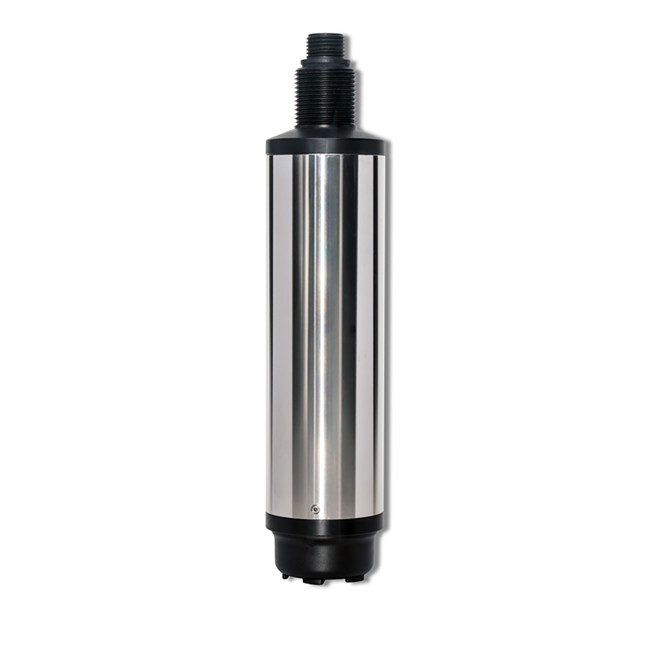

CS4760CD Dissolved Oxygen Sensor

Short Description:

technology offers significant advantages over conventional Clark-type electrodes. It requires no electrolytes, membranes, or periodic polarization, eliminating routine maintenance like membrane replacement and electrolyte refilling. It is unaffected by flow rate or stirring speed, provides a much faster response time, and does not consume oxygen during measurement, making it ideal for small sample volumes or biological cultures.
Consequently, fluorescence-based DO sensors have become the gold standard in applications demanding high precision, low maintenance, and minimal sample disturbance. They are extensively used in environmental monitoring (long-term deployments in buoys or profilers), wastewater treatment process control, aquaculture, pharmaceutical/bioreactor fermentation, and advanced laboratory research. By offering superior reliability and operational simplicity, they have redefined the landscape of dissolved oxygen analysis.

• Shell material: SUS316L + POM
• Measurement range:: 0-20 mg/L, 0-200%
• Pressure range:: ≤0.1 Mpa
• Temperature: 0-50°C
• Temperature compensation:: NTC
• Temperature range: : 0-50°C
• Calibration: : Anoxic water calibration, air calibration
• Connection method: : 4-core cable
• IP rate: IP68
