Water quality monitoring is one of the key tasks in environmental monitoring, providing accurate, timely, and comprehensive insights into current water conditions and trends. It serves as a scientific basis for water environment management, pollution control, and environmental planning, playing a vital role in water conservation, pollution prevention, and maintaining aquatic health.
Shanghai Chunye is committed to "transforming ecological advantages into economic benefits." Our business focuses on the R&D, production, sales, and service of industrial process control instruments, online water quality analyzers, non-methane total hydrocarbon (VOCs) exhaust gas monitoring systems, IoT data acquisition, transmission and control terminals, CEMS flue gas continuous monitoring systems, dust and noise monitors, air quality monitoring systems, and more.

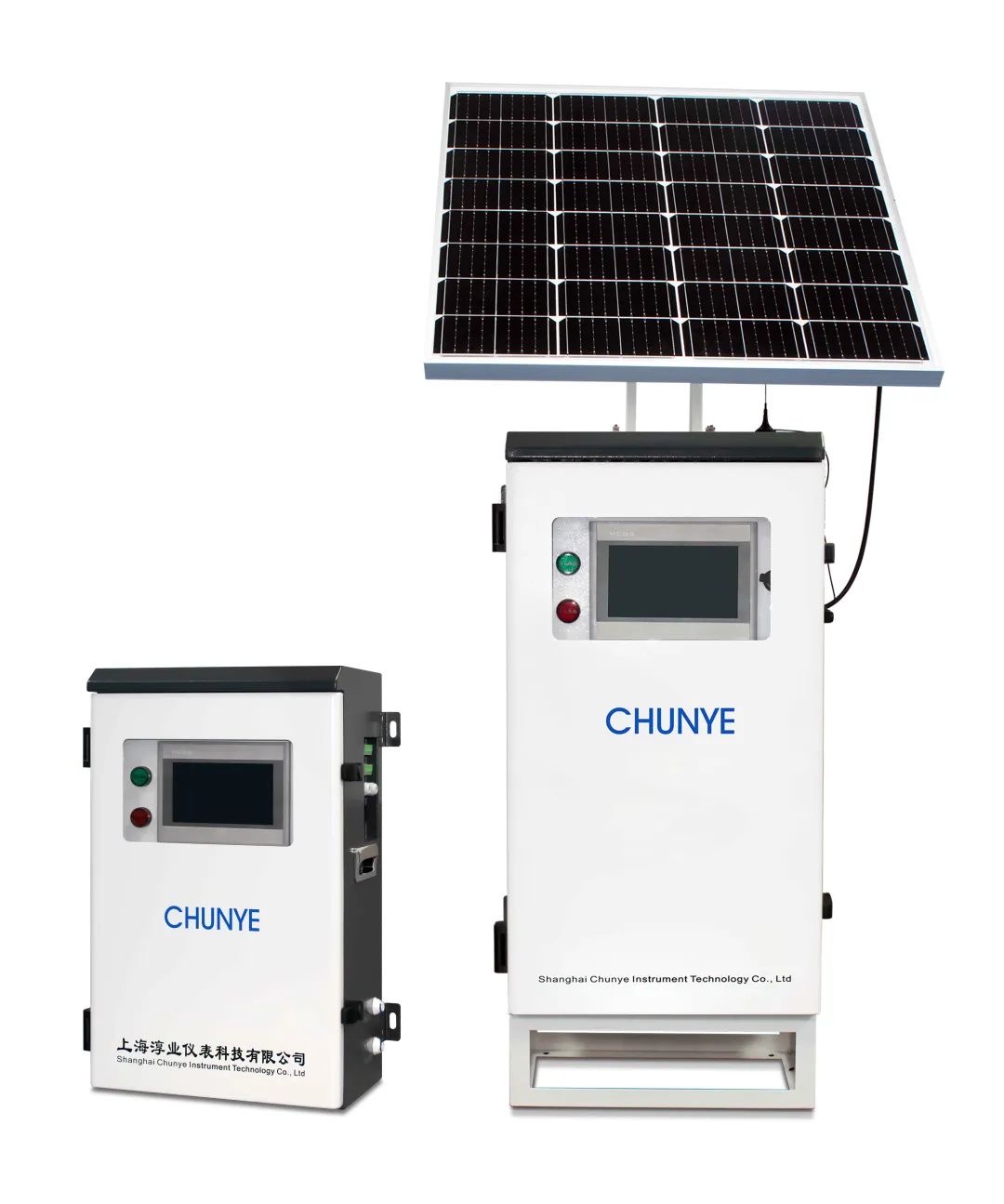

Upgraded Cabinet – Sleeker Design
The previous cabinet had an outdated appearance with a monotonous color scheme. After the upgrade, it now features a large pure white door panel paired with a dark gray frame, presenting a minimalist and sophisticated look. Whether placed in a lab or a monitoring station, it seamlessly blends into high-tech environments while standing out with its distinctive design, showcasing the cutting-edge essence of water quality monitoring equipment.
Product Features

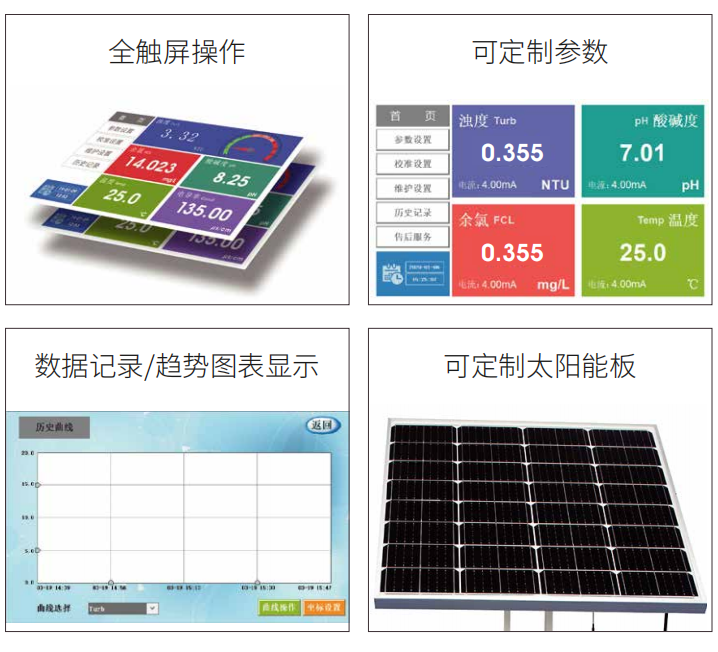

▪ High-sensitivity 7-inch color LCD touchscreen with backlight for intuitive operation.
▪ Durable carbon steel cabinet with painted finish for long-lasting performance.
▪ Standard Modbus RTU 485 communication protocol and 4-20mA analog output for convenient signal acquisition.
▪ Optional GPRS wireless remote transmission.
▪ Wall-mounted installation.
▪ Compact size, easy installation, water-saving, and energy-efficient.
Performance Specifications
| Measurement Parameter | Range | Accuracy |
|---|---|---|
| pH | 0.01–14.00 pH | ±0.05 pH |
| ORP | -1000 to +1000 mV | ±3 mV |
| TDS | 0.01–2000 mg/L | ±1% F.S |
| Conductivity | 0.01–200.0 / 2000 μS/cm | ±1% F.S |
| Turbidity | 0.01–20.00 / 400.0 NTU | ±1% F.S |
| Suspended Solids (SS) | 0.01–100.0 / 500.0 mg/L | ±1% F.S |
| Residual Chlorine | 0.01–5.00 / 20.00 mg/L | ±1% F.S |
| Chlorine Dioxide | 0.01–5.00 / 20.00 mg/L | ±1% F.S |
| Total Chlorine | 0.01–5.00 / 20.00 mg/L | ±1% F.S |
| Ozone | 0.01–5.00 / 20.00 mg/L | ±1% F.S |
| Temperature | 0.1–60.0 °C | ±0.3 °C |
Additional Specifications
- Signal Output: 1× RS485 Modbus RTU, 6× 4-20mA
- Control Output: 3× relay outputs
- Data Logging: Supported
- Historical Trend Curves: Supported
- GPRS Remote Transmission: Optional
- Installation: Wall-mounted
- Water Connection: 3/8" quick-connect fittings (inlet/outlet)
- Water Temperature Range: 5–40 °C
- Flow Rate: 200–600 mL/min
- Protection Rating: IP65
- Power Supply: 100–240 VAC or 24 VDC

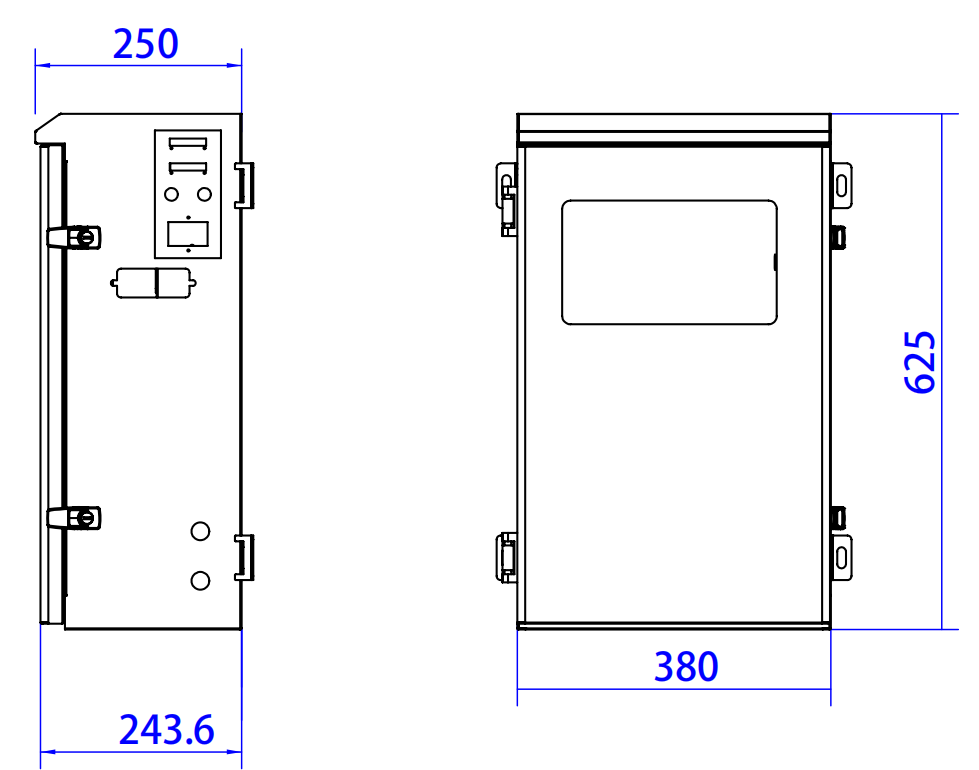

Product Size
