Application Scope
This analyzer can automatically detect residual chlorine concentration in water online. It adopts the reliable DPD colorimetric method (a national standard method), automatically adding reagents for colorimetric measurement. It is suitable for monitoring residual chlorine levels during chlorination disinfection processes and in drinking water distribution networks. This method is applicable for water with residual chlorine concentrations within the 0-5.0 mg/L (ppm) range.
Product Features
- Wide power input range, 7-inch touchscreen design
- DPD colorimetric method for higher accuracy and stability
- Adjustable measurement cycle
- Automatic measurement and self-cleaning
- External signal input to control measurement start/stop
- Optional automatic or manual mode
- 4-20mA and RS485 outputs, relay control
- Data storage function, supports USB export
Performance Specifications
| Parameter | Specification |
|---|---|
| Measurement Principle | DPD colorimetric method |
| Measurement Range | 0-5 mg/L (ppm) |
| Resolution | 0.001 mg/L (ppm) |
| Accuracy | ±1% F.S |
| Cycle Time | Adjustable (5-9999 min), default 5 min |
| Display | 7-inch color LCD touchscreen |
| Power Supply | 110-240V AC, 50/60Hz; or 24V DC |
| Analog Output | 4-20mA, Max. 750Ω, 20W |
| Digital Communication | RS485 Modbus RTU |
| Alarm Output | 2 relays: (1) Sampling control, (2) Hi/Lo alarm with hysteresis, 5A/250V AC, 5A/30V DC |
| Data Storage | Historical data & 2-year storage, supports USB export |
| Operating Conditions | Temp: 0-50°C; Humidity: 10-95% (non-condensing) |
| Flow Rate | Recommended 300-500 mL/min; Pressure: 1 bar |
| Ports | Inlet/outlet/waste: 6mm tubing |
| Protection Rating | IP65 |
| Dimensions | 350×450×200 mm |
| Weight | 11.0 kg |

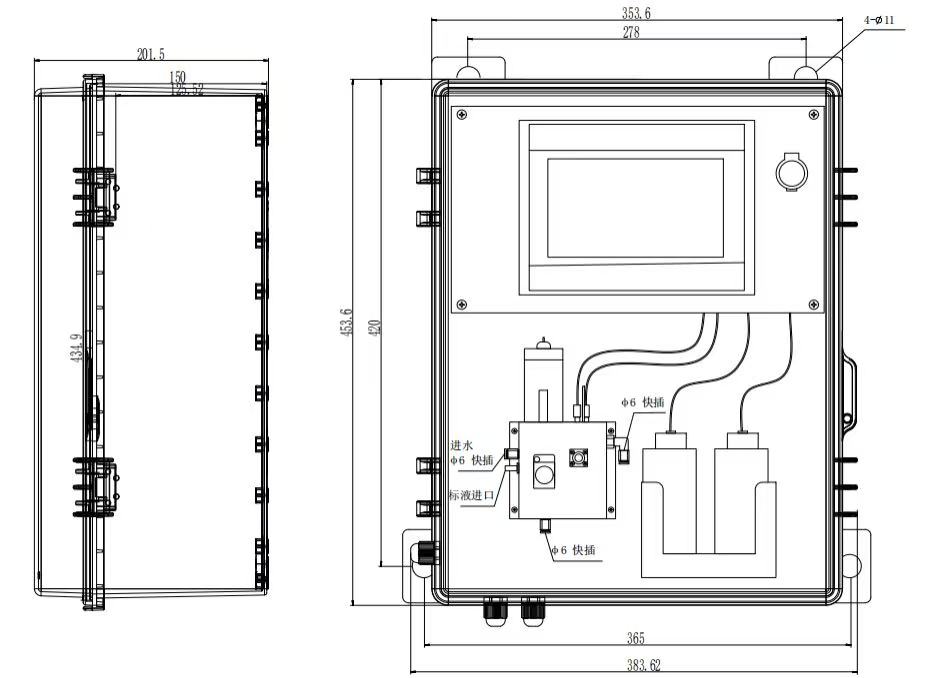

Product Size
