Water quality monitoring is one of the key tasks in environmental monitoring. It accurately, promptly, and comprehensively reflects the current state and trends of water quality, providing a scientific basis for water environment management, pollution source control, and environmental planning. It plays a vital role in protecting water environments, controlling pollution, and maintaining aquatic health.
Shanghai Chunye adheres to the service principle of "committed to transforming ecological environment advantages into eco-economic advantages." Its business primarily focuses on the R&D, production, sales, and service of industrial process control instruments, online water quality auto-monitoring analyzers, VOCs (volatile organic compounds) online monitoring systems, TVOC online monitoring and alarm systems, IoT data acquisition, transmission and control terminals, CEMS flue gas continuous monitoring systems, dust and noise online monitors, air monitoring, and related products.
The online water pollution monitoring system consists of water quality analyzers, integrated control and transmission systems, water pumps, pretreatment devices, and related auxiliary facilities. Its main functions include on-site equipment monitoring, water quality analysis and detection, and transmitting collected data to remote servers via network.
Pollution Source Series: Online Water Quality Monitoring System + Sample
This monitoring instrument can operate automatically and continuously without manual intervention based on field settings. It is widely applicable in industrial wastewater discharge, industrial process wastewater, industrial and municipal wastewater treatment plants, and other scenarios. Depending on the complexity of the on-site conditions, an appropriate pretreatment system can be selected to ensure reliable testing processes and accurate results, fully meeting various on-site requirements.
Key Features:
Imported Valve Core Components
Flexible reagent sampling timing and diverse channels with easy maintenance and long lifespan.
Printing Function (Optional)
Connect a printer to instantly print measurement data.
7-inch Touch Color Screen
Efficient and user-friendly operation with a simple interface for easy learning, operation, and maintenance.
Massive Data Storage
Stores historical data for over 5 years (measurement interval: 1 time/hour), meeting customer needs.
Automatic Leakage Alarm
Alerts users in case of reagent leakage for timely maintenance.
Optical Signal Recognition
Ensures high accuracy in quantitative analysis.
Easy Maintenance
Reagent replacement only once a month, significantly reducing maintenance workload.
Standard Sample Verification
Automatic standard sample verification function.
Auto-Ranging
Multiple measurement ranges with automatic switching for final test results.
Digital Communication Interface
Outputs commands, data, and operation logs; receives remote control commands from the management platform (e.g., remote start, time synchronization).
Data Output (Optional)
Supports serial and network port output for monitoring data; USB one-click upgrade for easy software updates.
Abnormal Alarm Function
No data loss during alarms or power failures; automatically discharges residual reactants and resumes operation after recovery.
Technical Specifications
| Model | T9000 | T9001 | T9002 | T9003 |
| Measurement Range | 10~5000 mg/L | 0~300 mg/L (adjustable) | 0~500 mg/L | 0~50 mg/L |
| Detection Limit | 3 | 0.02 | 0.1 | 0.02 |
| Resolution | 0.01 | 0.001 | 0.01 | 0.01 |
| Accuracy | ±10% or ±5 mg/L (whichever is greater) | ≤10% or ≤0.2 mg/L (whichever is greater) | ≤±10% or ≤±0.2 mg/L | ±10% |
| Repeatability | 5% | 2% | ±10% | ±10% |
| Low-Concentration Drift | ≤±5 mg/L | ≤0.02 mg/L | ±5% | ±5% |
| High-Concentration Drift | ≤5% | ≤1% | ±10% | ±10% |
| Measurement Cycle | Minimum 20 min; digestion time adjustable (5~120 min based on water sample) | |||
| Sampling Cycle | Adjustable intervals, fixed-time, or trigger modes | |||
| Calibration Cycle | Auto-calibration (adjustable 1~99 days); manual calibration available | |||
| Maintenance Cycle | >1 month; ~30 min per session | |||
| Operation | Touchscreen display and command input | |||
| Self-Check & Protection | Self-diagnosis; no data loss during faults/power failures; auto-recovery | |||
| Data Storage | ≥5 years | |||
| Input Interface | Digital signal | |||
| Output Interface | 1×RS232, 1×RS485, 2×4~20 mA | |||
| Operating Conditions | Indoor use; recommended: 5~28°C, humidity ≤90% (non-condensing) | |||
| Power & Consumption | AC 230±10% V, 50~60 Hz, 5 A | |||
| Dimensions (H×W×D) | 1500 × 550 × 450 mm | |||

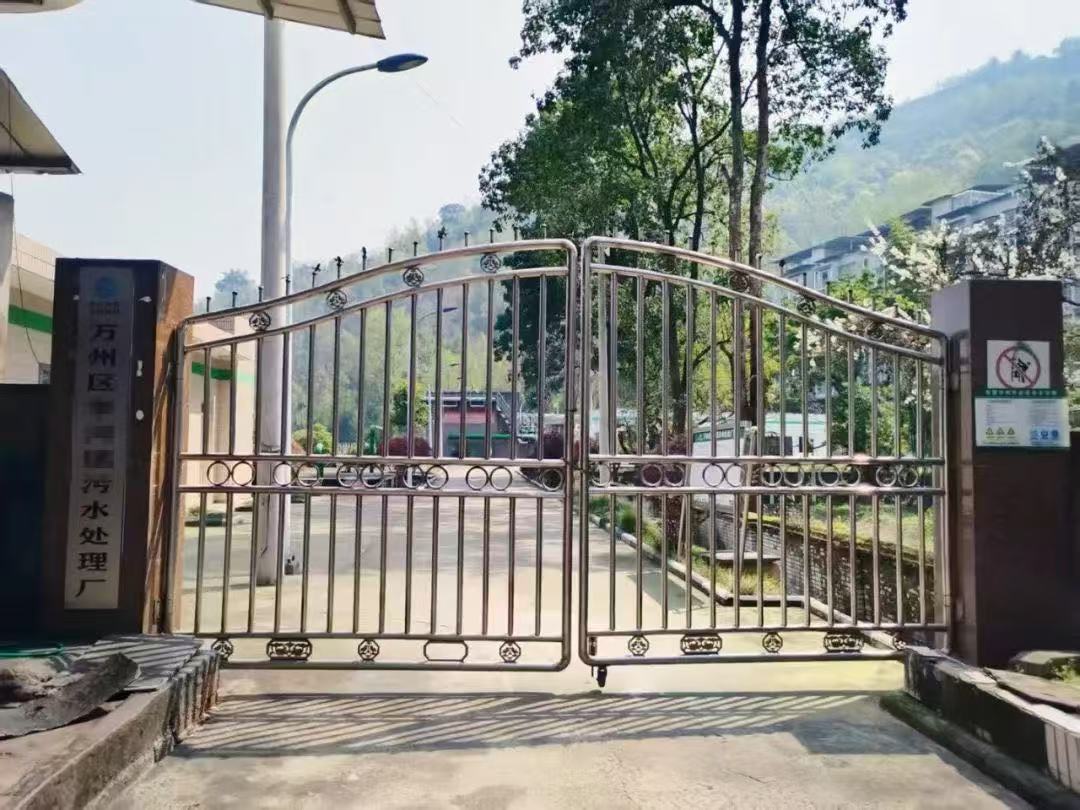

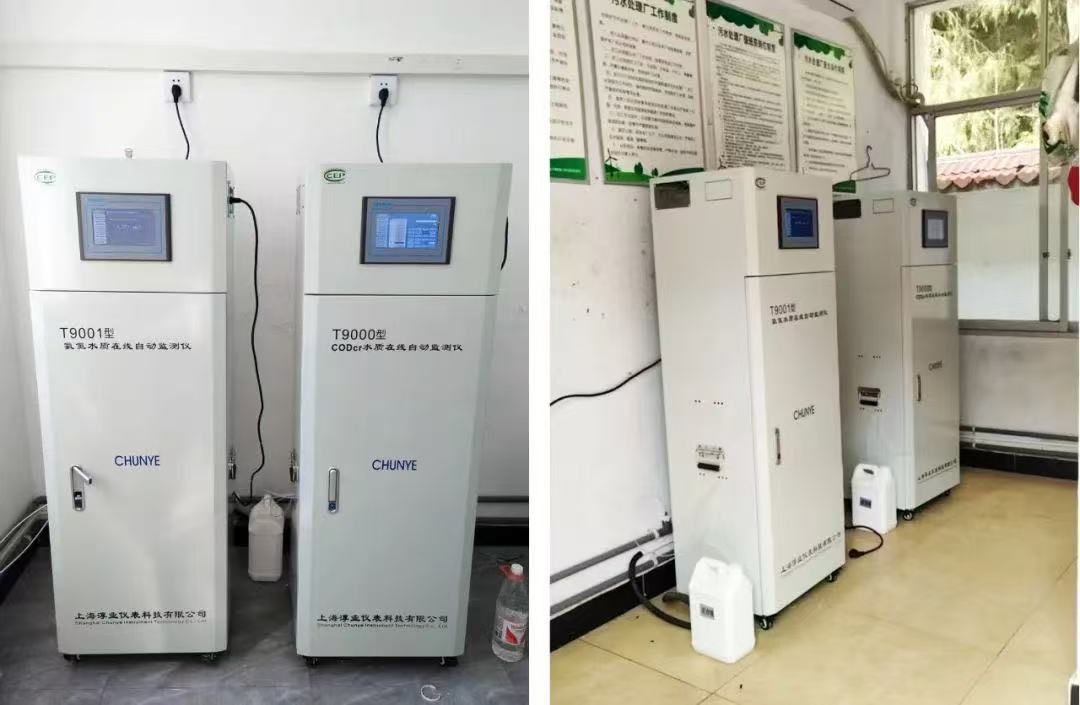

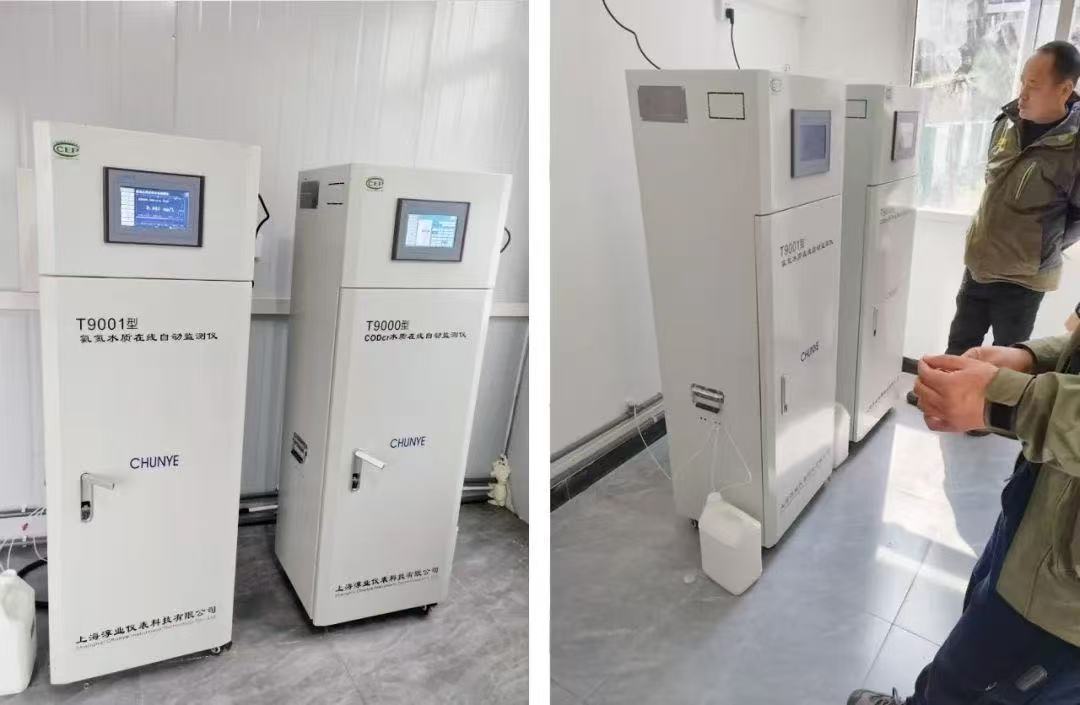

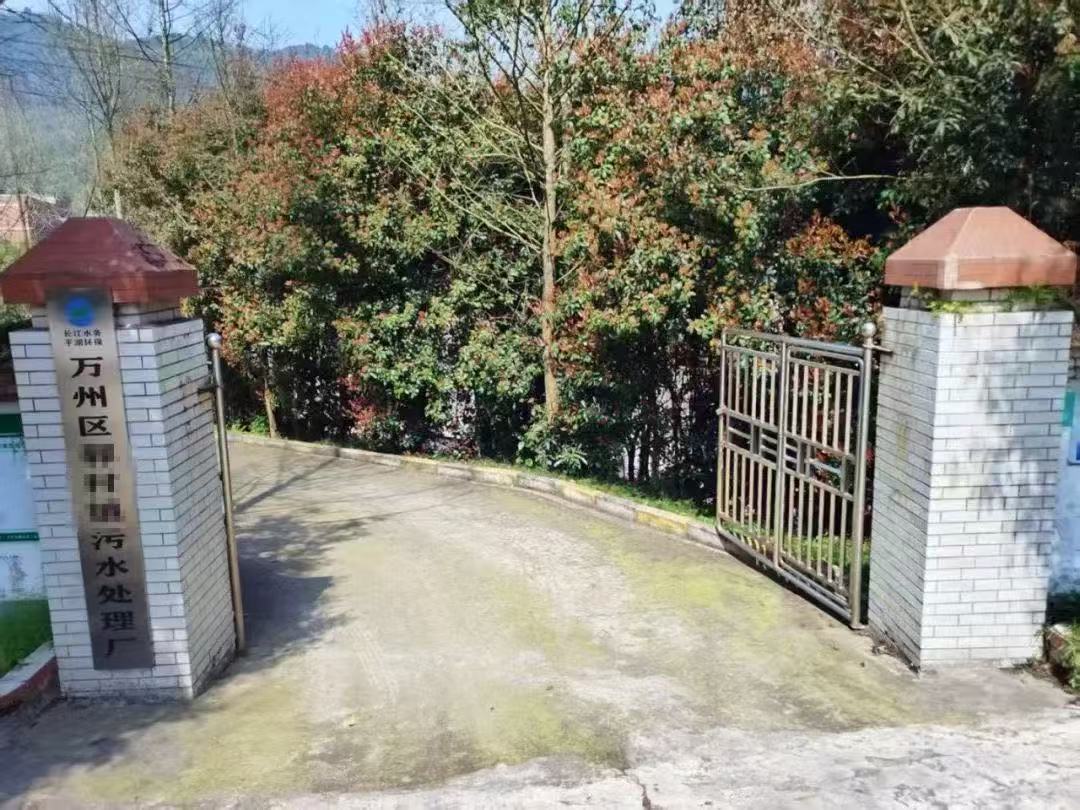

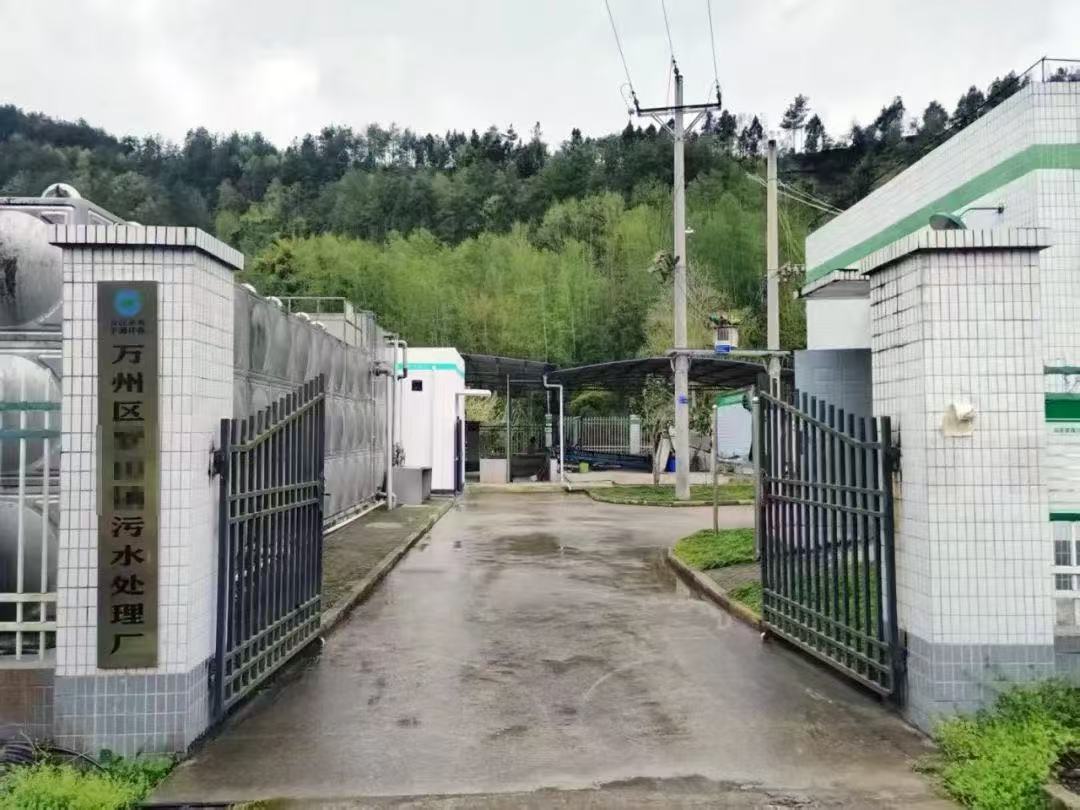

Installation Case
