Water quality monitoring is one of the primary tasks in environmental monitoring. It accurately, timely, and comprehensively reflects the current status and development trends of water quality, providing a scientific basis for water environment management, pollution source control, and environmental planning. It plays a crucial role in water environmental protection, water pollution control, and maintaining water environment health.
Shanghai Chunye adheres to the service philosophy of "dedicated to transforming ecological and environmental advantages into eco-economic benefits." Its business scope mainly focuses on the research and development, production, sales, and service of a series of products including industrial process control instruments, online water quality automatic monitors, VOCs (Volatile Organic Compounds) online monitoring systems and TVOC online monitoring alarm systems, IoT data acquisition, transmission and control terminals, CEMS flue gas continuous monitoring systems, dust and noise online monitors, and air monitoring systems.

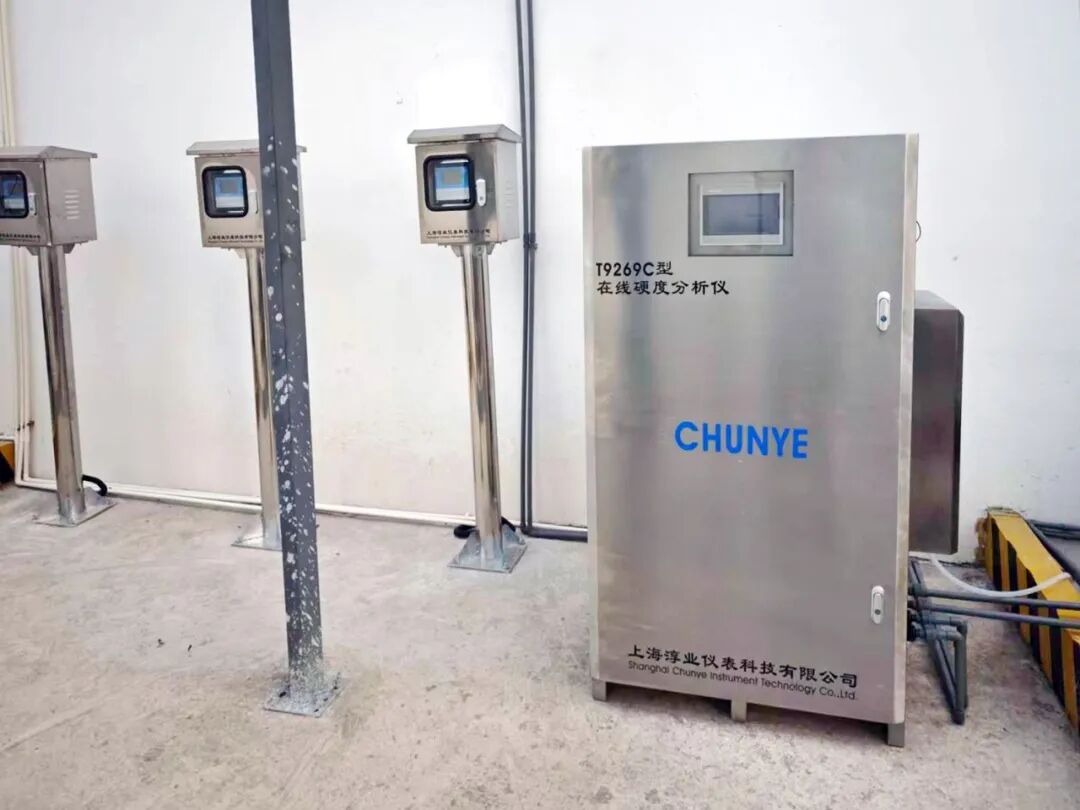

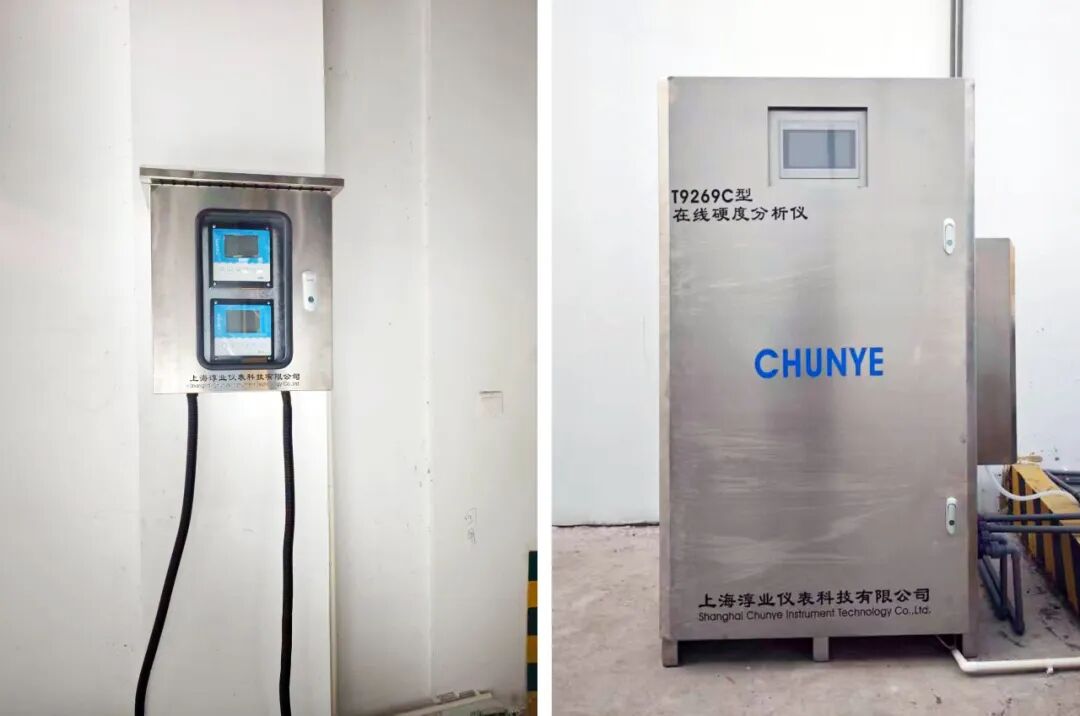

Recently, a complete set of industrial water quality monitoring solutions, tailored by Shanghai Chunye Instrument Technology Co., Ltd. (referred to as "Chunye Technology") for an industrial park in Taicang, has been successfully implemented. Several core pieces of equipment, including the T9269C Online Hardness Analyzer and the T6072 Online Turbidity Meter, have completed installation, commissioning, and are now officially operational. The deployment of these devices will provide real-time and accurate water quality data support for critical links within the park's enterprises, such as boiler feed water, circulating water, process water, and wastewater treatment, assisting the park in achieving the dual goals of refined industrial water management and environmental compliance.
To address the complex water usage scenarios and monitoring requirements of the industrial park, Chunye Technology has configured a multi-series portfolio of high-performance water quality monitoring equipment, covering multiple key parameters including hardness, turbidity, suspended solids concentration, fluoride ion content, and pH/ORP. Among them, the T9269C Online Hardness Analyzer, leveraging the core technical advantages of titration colorimetry, offers a measurement range of 0.50-1000ppm, supports free switching between multiple units (mg/L, ppm, mmol/L), boasts a high resolution of 0.001, and maintains measurement accuracy within ±5%, enabling precise detection of subtle changes in water hardness. The device is equipped with a 7-inch color LCD touch screen for intuitive and convenient operation, and features automatic measurement and cleaning functions. Its adjustable measurement cycle (10-9999 minutes) allows flexible adaptation to different monitoring needs. Coupled with 2-year data storage and USB export capabilities, it provides comprehensive data support for water quality traceability in the park. Its wide power input design (110-240VAC, 50/60Hz or 24VDC, 20W) and IP65 protection rating enable it to easily handle the complex power supply environments and harsh working conditions of industrial sites.

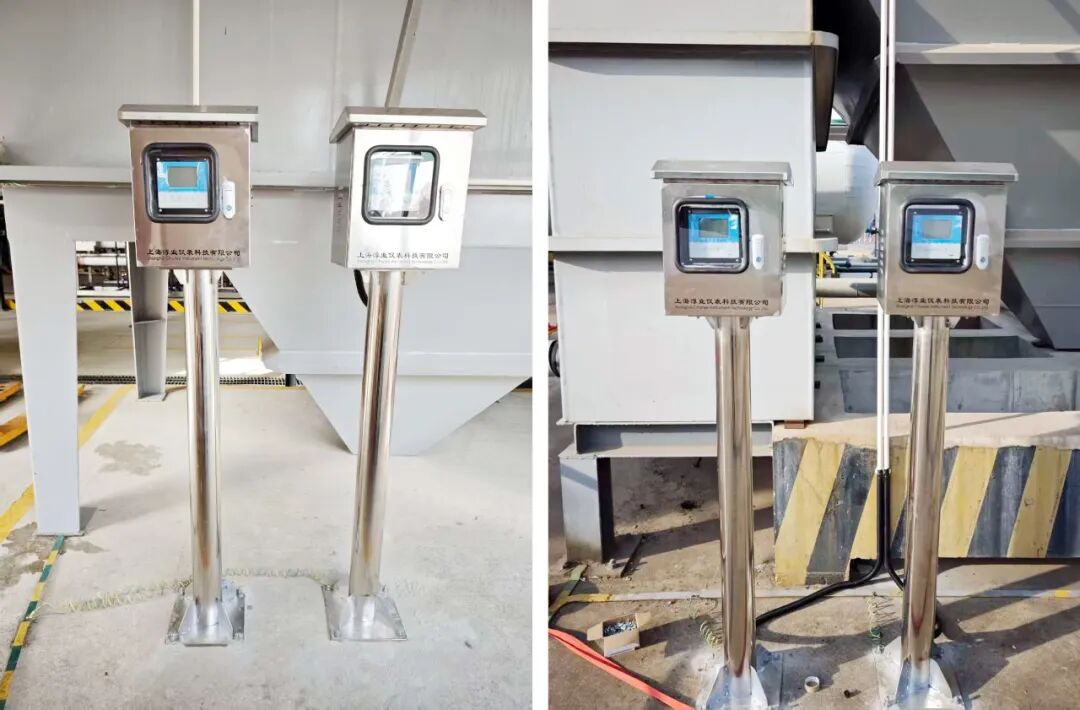

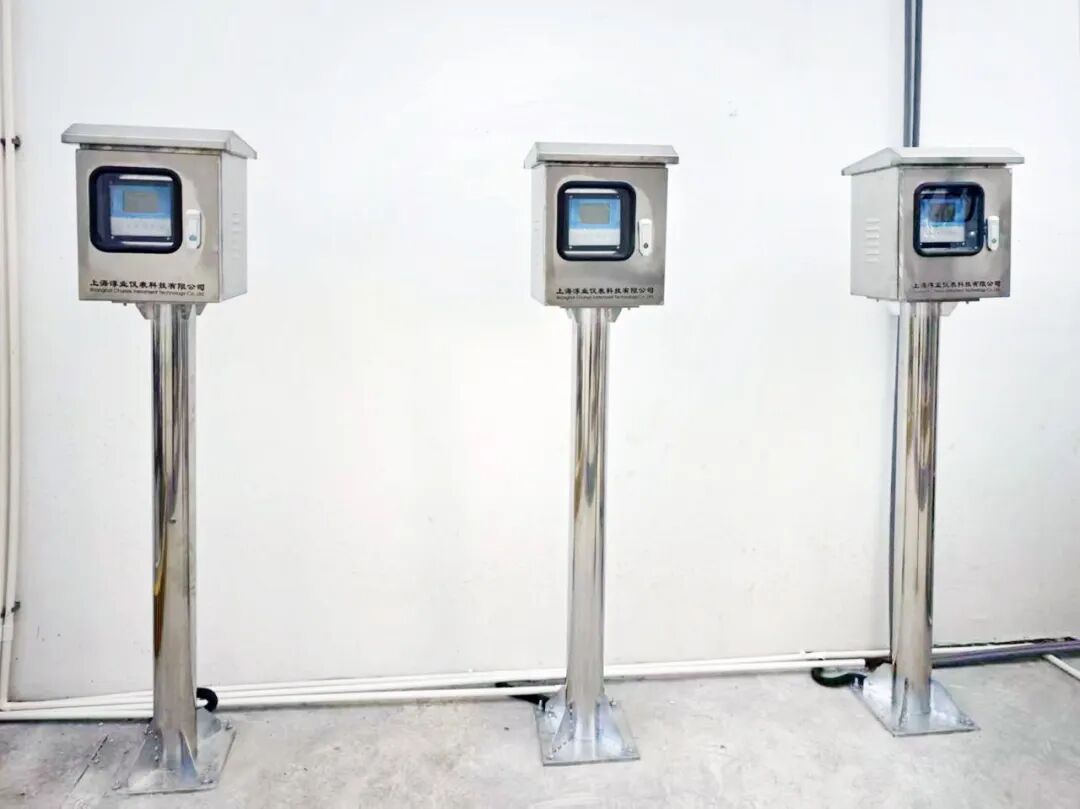

To meet the multi-dimensional water quality monitoring needs of the park, this installation also includes several specialized monitoring devices. The online turbidity meter features a large LCD color screen display, with a measurement range covering 0.001-9999 NTU, and supports manual or automatic temperature compensation. The same interface can simultaneously display turbidity values, temperature, and current output values. Paired with dual output methods (4-20mA and RS485), it can seamlessly integrate with the park's existing control system, enabling precise monitoring of turbidity indicators in links such as circulating cooling water and membrane filtration effluent. The suspended solids (sludge) concentration meter offers an ultra-wide range of 0-200,000 mg/L, suitable for concentration monitoring in scenarios like wastewater treatment plant inlets/outlets, aeration tanks, and sludge dewatering. Its multiple installation methods (panel-mounted, wall-mounted, and pipe-mounted) provide flexible adaptation to the installation requirements of different monitoring points within the park.
Addressing the special water quality monitoring needs of some enterprises, a fluoride ion monitor and an online pH/ORP meter have been simultaneously installed. The fluoride ion monitor has a measurement range of 0.02-2000 mg/L, employs a differential signal measurement mode for stability and reliability, and can accurately monitor fluoride ion concentration in industrial water. The online pH/ORP meter can simultaneously monitor pH values (-2.00 to 16.00 pH) and ORP values (-2000 to +2000 mV), with measurement accuracies of ±0.01pH and ±2mV respectively. It features multiple automatic calibration functions and password protection design, ensuring both data accuracy and preventing unauthorized operation by non-staff. Furthermore, supporting CS series sensors and electrode products, such as the digital turbidity sensor (IP68 waterproof rating, measurement range 0.01-4000 NTU) and pH electrode (resistant to hydrofluoric acid and high chloride ion environments), further enhance the adaptability and stability of the entire monitoring system.
During the installation process, Chunye Technology's technical team strictly adhered to industrial equipment installation specifications. Considering the park's pipeline network layout and water usage processes, they scientifically planned equipment installation locations to ensure the rational arrangement of sample inlet, outlet, and waste liquid discharge ports (inlet/outlet ports designed with 6mm tubing). They also completed communication debugging between the equipment and the park's control system, ensuring stable transmission of 4-20mA analog output and RS485 Modbus RTU communication. After commissioning, the technical team provided detailed explanations to the park's maintenance personnel regarding the equipment's daily operation, calibration procedures, and maintenance key points to ensure long-term stable operation of the equipment.
The successful installation of Chunye Technology's full series of water quality monitoring equipment in the Taicang Industrial Park not only demonstrates the core advantages of the products in terms of measurement accuracy, operational stability, and environmental adaptability but also reflects Chunye Technology's professional capability in providing customized water quality monitoring solutions for industrial users. In the future, Chunye Technology will continue to empower water quality management for more industrial enterprises and parks with high-quality products and comprehensive services, contributing to water resource recycling and green, low-carbon development.
Post time: Jan-23-2026
