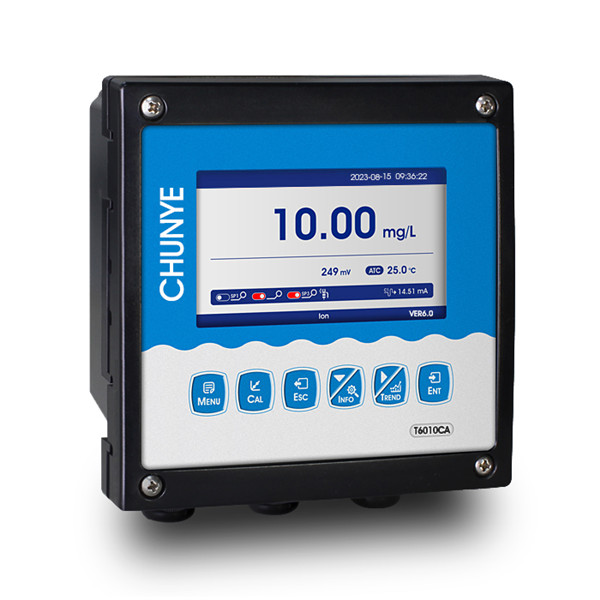

T6010CA Hardness (Calcium Ion) Monitor
Instrument Features:
● Large LCD screen with color liquid crystal display
● Intelligent menu operation
● Data recording and curve display
● Multiple automatic calibration functions
● Differential signal measurement mode, stable and reliable
● Manual and automatic temperature compensation
● Three groups of relay control switches
● High limit, low limit, and hysteresis quantity control
● 4-20mA and RS485 multiple output methods
● Display of ion concentration, temperature, current, etc. on the same interface
● Password setting for protection against unauthorized operation by non-professionals
Specifications:
(1) Measuring Range (Depending on Electrode Range):
Concentration: 0.02–40,000 mg/L
(Solution pH: 2.5–11 pH)
Temperature: 0–50.0°C
(2) Resolution:
Concentration: 0.01 / 0.1 / 1 mg/L
Temperature: 0.1°C
(3) Basic Error:
Concentration: ±5%
Temperature: ±0.3°C
(4) Dual Current Output:
0/4–20 mA (Load resistance < 500Ω)
20–4 mA (Load resistance < 500Ω)
(5) Communication Output:
RS485 MODBUS RTU
(6) Three Sets of Relay Control Contacts:
5A 250VAC, 5A 30VDC
(7) Power Supply (Optional):
85–265VAC ±10%, 50±1Hz, Power ≤3W
9–36VDC, Power ≤3W
(8) Dimensions:
144 × 144 × 118 mm
(9) Mounting Methods:
Panel-mounted / Wall-mounted / Pipeline-mounted
Panel cutout size: 137 × 137 mm
(10) Protection Rating:IP65
(11) Instrument Weight:0.8 kg
(12) Operating Environment:
Ambient Temperature: -10–60°C
Relative Humidity: ≤90%
No strong magnetic interference (except Earth's magnetic field).
