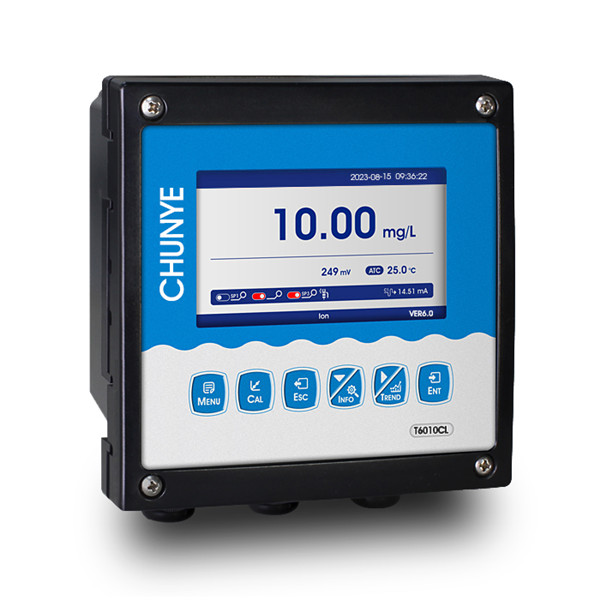

T6010CL Chloride Ion Monitor
Specifications:
1.LCD color liquid crystal screen display
2.Intelligent menu operation
3.Multiple automatic calibration functions
4.Differential signal measurement mode, stable and reliable
5.Manual and automatic temperature compensation
6.Two sets of relay control switches
7.High limit, low limit, hysteresis value control
8.4-20mA & RS485 multiple output methods
9.Display of ion concentration, temperature,current, etc.on the same interface
10.It also has password protection to prevent.unauthorized personnel from making mistakes
(1) Measurement range (based on electrode range): Concentration: 1.8 - 35500 mg/L; (Solution pH value: 2 - 12 pH) Temperature: -10 - 150.0℃;
(2) Resolution: Concentration: 0.01/0.1/1 mg/L; Temperature: 0.1℃;
(3) Basic error: Concentration: ± 5 - 10% (based on electrode range);
Temperature: ±0.3℃;
(4) 2-channel current output: 0/4 - 20 mA (load resistance < 750Ω); 20- 4 mA (load resistance < 750Ω);
(5) Communication output: RS485 MODBUS RTU;
(6) Three groups of relay control contacts: 5A 250VAC, 5A 30VDC;
(7) Power supply (optional): 85 - 265VAC ± 10%, 50 ± 1Hz, power ≤
3W;9 - 36VDC, power: ≤ 3W;
(8) External dimensions: 144 × 144 × 118 mm;
(9) Installation method: panel-mounted, wall-mounted, pipe-mounted;
Panel opening size: 137 × 137 mm;
(10) Protection level: IP65;
(11) Instrument weight: 0.8 kg;
(12) Instrument working environment:
Environmental temperature: -10 - 60℃;
Relative humidity: no more than 90%;
No strong magnetic field interference
except for the Earth's magnetic field.
