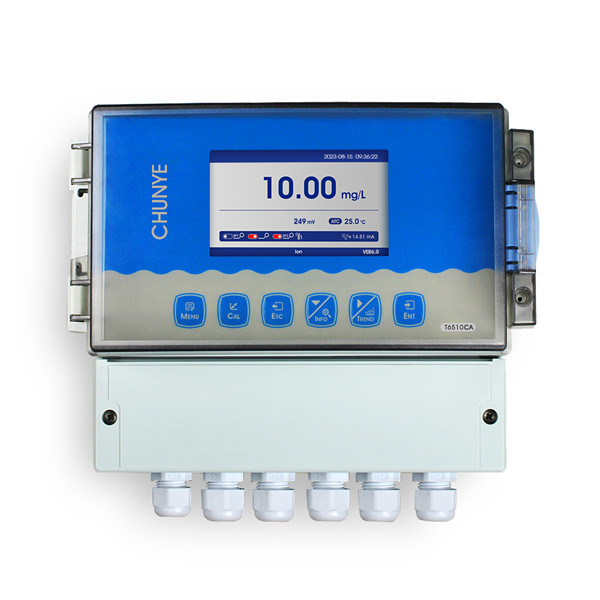

T6510CA Hardness (Calcium Ion) Monitor
Instrument Features:
● Large LCD screen with color liquid crystal display
● Intelligent menu operation
● Data recording and curve display
● Multiple automatic calibration functions
● Differential signal measurement mode, stable and reliable
● Manual and automatic temperature compensation
● Three groups of relay control switches
● High limit, low limit, and hysteresis quantity control
● 4-20mA and RS485 multiple output methods
● Display of ion concentration, temperature, current, etc. on the same interface
● Password setting for protection against unauthorized operation by non-professionals
Specifications:
(1) Measuring Range (Electrode Dependent):Concentration: 0.2-40,000 mg/L*(Solution pH: 2.5-11 pH)*Temperature: 0-50.0°C
(2) Resolution:Concentration: 0.01/0.1/1 mg/L Temperature: 0.1°C
(3) Basic Error:Concentration: ±5%,Temperature: ±0.3°C
(4) Dual Current Output:0/4-20mA (Load resistance <500Ω)20-4mA (Load resistance <500Ω)
(5) Communication Output:RS485 MODBUS RTU
(6) Three Sets of Relay Contacts:5A 250VAC, 5A 30VDC
(7) Power Supply (Optional):85-265VAC ±10%, 50±1Hz, Power ≤3W,9-36VDC, Power ≤3W
(8) Dimensions:235×185×120 mm
(9) Mounting Method:Wall-mounted
(10) Protection Rating:IP65
(11) Weight:1.0 kg
(12) Operating Environment:
Ambient Temperature: -10 to 60°C
Relative Humidity: ≤90%
No strong magnetic interference (except Earth's magnetic field)
