Calcium Ion Selective Electrode Water Quality Analysis CS6718S RS485 Digital Hardness

Short Description:

The calcium electrode is a PVC sensitive membrane calcium ion selective electrode with organic phosphorous salt as the active material, used to measure the concentration of Ca2+ ions in the solution.
Application of calcium ion: The calcium ion selective electrode method is an effective method to determine the calcium ion content in the sample. The calcium ion selective electrode is also often used in online instruments, such as industrial online calcium ion content monitoring, calcium ion selective electrode has the characteristics of simple measurement, fast and accurate response, and can be used with pH and ion meters and online calcium ion analyzers. It is also used in ion selective electrode detectors of electrolyte analyzers and flow injection analyzers.

Model Number: CS6718S
Output Signal: RS485 or 4-20mA
Type: Digital ISE Sensor Series
Place of Origin: Shanghai
Brand Name: Chunye
Housing Materials: PP+PVC

Send email to us Download as PDF

Product Detail

Product Tags

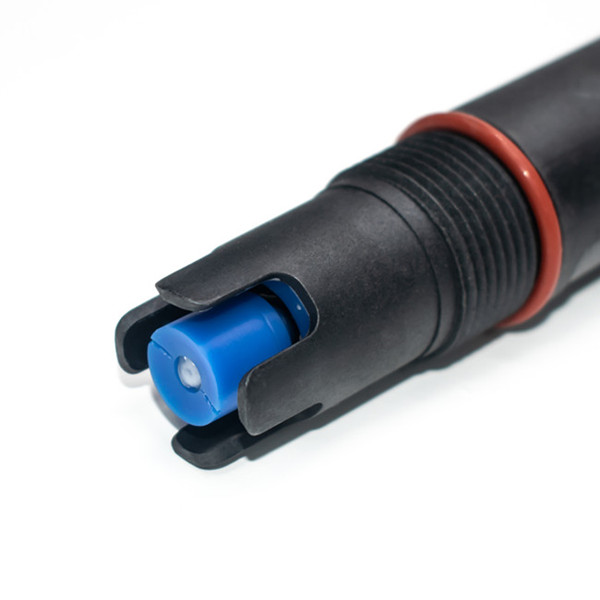

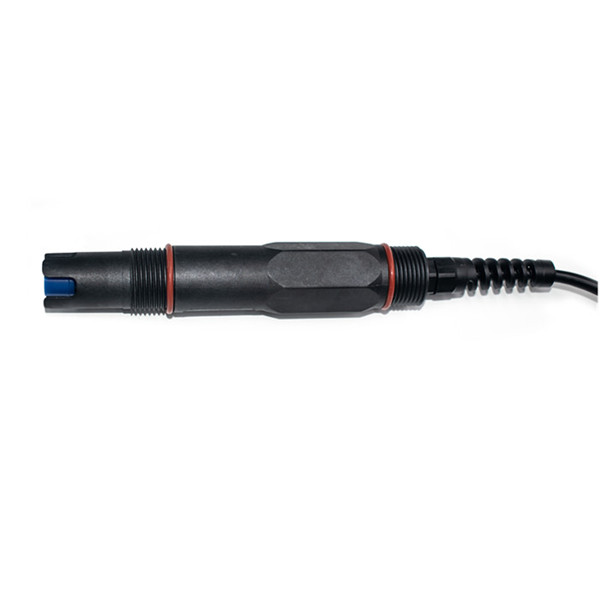

CS6718S Calcium Ion Selective Sensor

Features:

1.large sensitive area fast response, stable signal

2.PP material,Work well at 0~50℃.

3.The lead is made of pure copper, which can directlyrealize remote transmission, which is more accurate

and stable than the lead signal of copper-zinc alloy.

4.Waterproof and durable IP68.

5.Adopt PTFE large ring diaphragm, long life time.

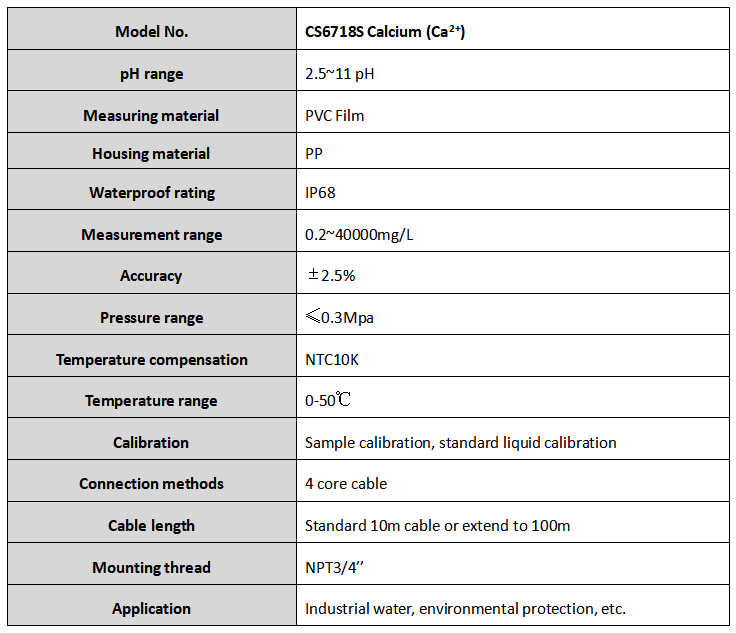

Technicals:

Model No.	CS6718S Calcium (Ca²⁺)
pH range	2.5~11 pH
Measuring material	PVC Film
Housing material	PP
Waterproof rating	IP68
Measurement range	0.2~40000mg/L
Accuracy	±2.5%
Pressure range	≤0.3Mpa
Temperature compensation	NTC10K
Temperature range	0-50℃
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 10m cable or extend to 100m
Mounting thread	NPT3/4’’
Application	Industrial water, environmental protection, etc.
