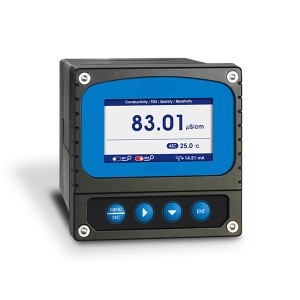

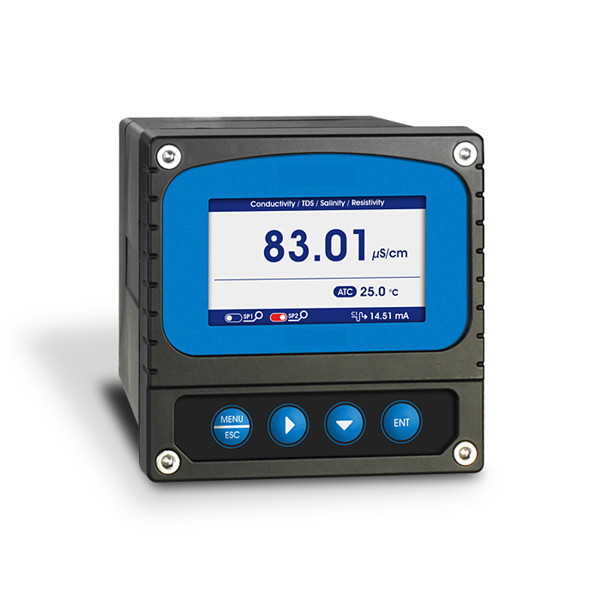

Features
1. Large display, standard 485 communication, with online and offline alarm, 98*98*130 meter size, 92.5*92.5 hole size,3.0 in chlarge screen display.
2. Fluorescent dissolved oxygen electrode adopts optical physics principle, no chemical reaction in the measurement,no influence of bubbles, aeration/anaerobic tank installation and measurement are more stable, maintenance-free in the later period, and more convenient to use.
3. Carefully select materials and strictly select each circuit component, which greatly improves the stability of the circuit during long-term operation.
4. The new choke inductance of the power board can effectively reduce the influence of electromagnetic interference, and the data is more stable.
5. The design of the whole machine is waterproof and dustproof, and the back cover of the connection terminal is added to extend the service life in harsh environments.
6. Panel/wall/pipe installation, three options are available to meet various industrial site installation requirements.
Technical specifications:
(1) Measurement range (based on the electrode range):
Dissolved oxygen: 0–200 µg/L to 20.0 mg/L;
temperature ：-10～150.0℃；
(2) Resolution:
Dissolved oxygen: 0.1 µg/L; 0.01 mg/L;
temperature ：0.1℃；
(3) Basic Error:
Dissolved oxygen: ±1% F.S.;
temperature ：±0.3℃；
(4) Electrode residual signal: <1‰;
(5) Response time (90% final value):
<60 seconds at 25°C; <30 seconds at 35°C;
（6） stability ：
Under atmospheric pressure and constant temperature, the weekly drift is <2% F.S.
(7) Dual-channel current output:
0.4–20 mA (load resistance <750 Ω);
20–4 mA (load resistance <750 Ω);
(8) Communication output: RS485 MODBUS RTU;
(9) Two sets of relay control contacts:
3A 250VAC，3A 30VDC；
(10) Power supply (optional):
85–265 VAC ±10%,50 ±1 Hz, power ≤3 W;
9–36 VDC, power: ≤3 W;
(11) Dimensions: 98×98×130 mm;
(12) Installation methods: panel-mounted or wall-mounted;
Panel opening dimensions: 92.5×92.5 mm;
(13) Protection rating: IP65;
(14) Weight: 0.6 kg;
(15) Work Environment:
Environmental temperature: -10 to 60°C;
Relative humidity: no more than 90%;
There are no strong magnetic field disturbances around it other than the Earth's magnetic field.
