CS1754FC Industrial Online pH Electrode – PP+GF Plastic Body, PTFE Liquid Junction, Ag/AgCl Reference System for Harsh Chemical Environments

Short Description:

compatible with a variety of analog signal electrodes. Complete functions, stable performance, easy operation, low power consumption, safety and reliability are the outstanding advantages of this instrument. This instrument is equipped with RS485 transmission interface, which can be connected to the host computer through ModbusRTU protocol to realize monitoring and recording. It can be widely used in industrial occasions such as thermal power generation, chemical industry, metallurgy, environmental protection, pharmaceutical, biochemical, food and tap water.
Industrial Online Multi Water Quality Monitoring Combination pH Sensor pH Electrode Probe For Wastewater treatment

Customized support: OEM, ODM
Waterproof grade: IP68
Type: pH electrode
Certification: CE ISO
Model Number: CS1754FC
Industrial rs485 online water orp pH sensor: pH sensor high chemical processes
Application: Designed for harsh media environments such as electroplating wastewater, sodium sulfate, and heavy metal-containing solutions

Send email to us Download as PDF

Product Detail

Product Tags

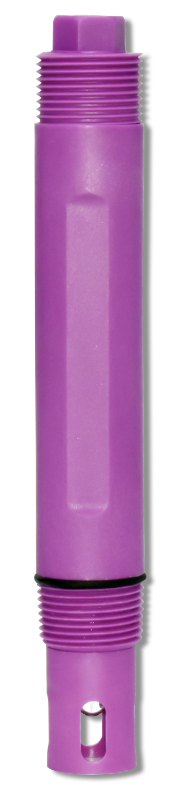

CS1754FC pH sensor Plating wastewater

Specifications

pH Range: 0–14 pH

Zero Point: 7.00 ± 0.25

Temperature Range: 0–80 °C

Pressure Resistance: 0–0.6 MPa

Temperature Sensor: NTC10K / NTC2.2K / PT100 / PT1000

Housing Material: PP+GF

Membrane Resistance: < 80 MΩ

Reference System: Ag/AgCl

Liquid Junction: PTFE

Thread Connections: Lower NPT 3/4, Upper G 3/4

Cable Length: 10 m or as agreed

Cable Connector: Pin, BNC, or as agreed

Part Numbers

Name	Content	Number
temperature sensor	NTC10K	N1
	NTC2.252K	N2
	PT100	P1
	PT1000	P2
Cable Length	5m	m5
	10m	m10
	15m	m15
	20m	m20
cable connector	Wire Boring Tin	A1
	Y insert	A2
	One-line pin	A3
	BNC	A4

FAQ

Q1: What's your business range?

A: We manufacture Water quality analysis instruments and provide dosing pump, diaphragm pump, water pump, pressure

instrument, flow meter, level meter and dosing system.

Q2: May I visit your factory?

A: Of course, our factory is located in Shanghai, welcome your arrival.

Q3: Why should I use Alibaba Trade Assurance orders?

A: Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales, returns, claims etc.

Q4: Why choose us?

1. We have more than 10 years of industry experience in water treatment.

2. High quality products and competitive price.

3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.

Send An Inquiry Now we will provide the timely feedback!

CS1754C pH sensor Plating wastewater

Specifications

pH range: 0-14pH

pH zero point: 7.00±0.25

Temperature range: 0-80°C

Pressure resistance: 0-0.6MPa

Temperature sensor: NTC10K/NTC2.2K/PT100/PT1000

Shell material: PP

Membrane resistance: <800MΩ

Reference system: Ag/AgCL

Liquid interface: PTFE

Electrolyte solution: KNO3

Connection thread: NPT3/4''

Cable length: 10m or as agreed

Cable connector: Pin, BNC or as agreed

Part Numbers

Name	Content	Number
temperature sensor	NTC10K	N1
	NTC2.252K	N2
	PT100	P1
	PT1000	P2
Cable Length	5m	m5
	10m	m10
	15m	m15
	20m	m20
cable connector	Wire Boring Tin	A1
	Y insert	A2
	One-line pin	A3
	BNC	A4
