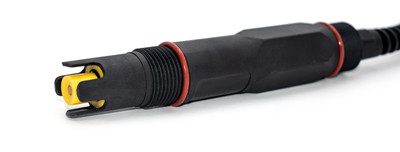

CS6720SD Digital RS485 Nitrate Ion Selective Sensor NO3- Electrode Probe 4~20mA Output

Short Description:

Ion selective electrode is a kind of electrochemical sensor that uses membrane potential to measure the activity or concentration of ions in the solution. When it comes into contact with the solution containing the ions which are to be measured, it will generate contact with the sensor at the interface between its sensitive
membrane and the solution. Ion activity is directly related to membrane potential. Ion selective electrodes are also called membrane electrodes. This type of electrode has a special electrode membrane that selectively responds to specific ions.


  • Model NO.: CS6720SD
  • Power: 9~36VDC
  • Housing material: POM
  • Trademark: twinno
  • Output: RS485 MODBUS RTU

Product Detail

Product Tags

CS6720SD Digital Nitrate Sensor Series

Digital-RS485-Nitrate-Ion-Selective-Sensor-NO3-Electrode-Probe-4-20mA-Output (1)                    1666764112(1)

Ion selective electrode is a kind of electrochemical sensor that uses membrane potential to measure theactivity or concentration of ions in the solution. When it comes into contact with the solution containing the ions which are to be measured, it will generate contact with the sensor at the interface between its sensitive membrane and the solution. Ion activity is directly related to membrane potential. Ion selective electrodes are also called membrane electrodes. This type of electrode has a special electrode membrane that selectively responds to specific ions. The relationship between the potential of the electrode membrane and the ion content to be measured conforms to the Nernst formula. This type of electrode has the characteristics of good selectivity and short equilibrium time, making it the most commonly used indicator electrode for potential analysis.

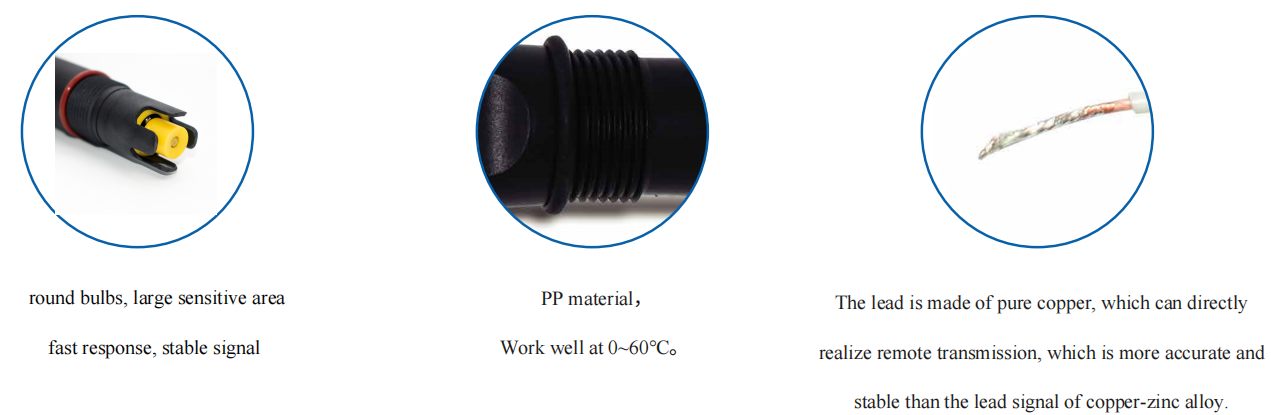

Features

1666766693(1)

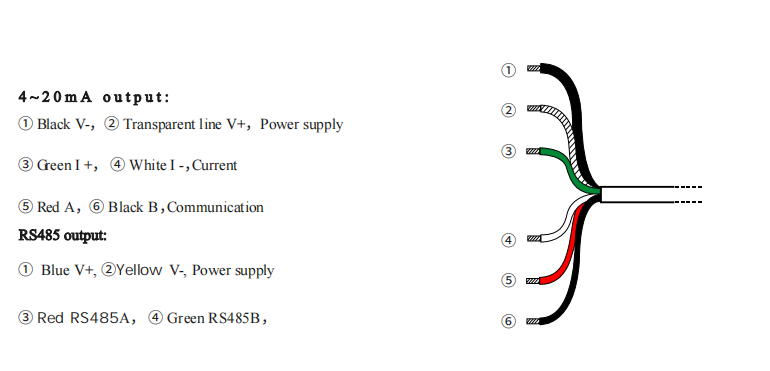

Wiring

                 1666764143(1)

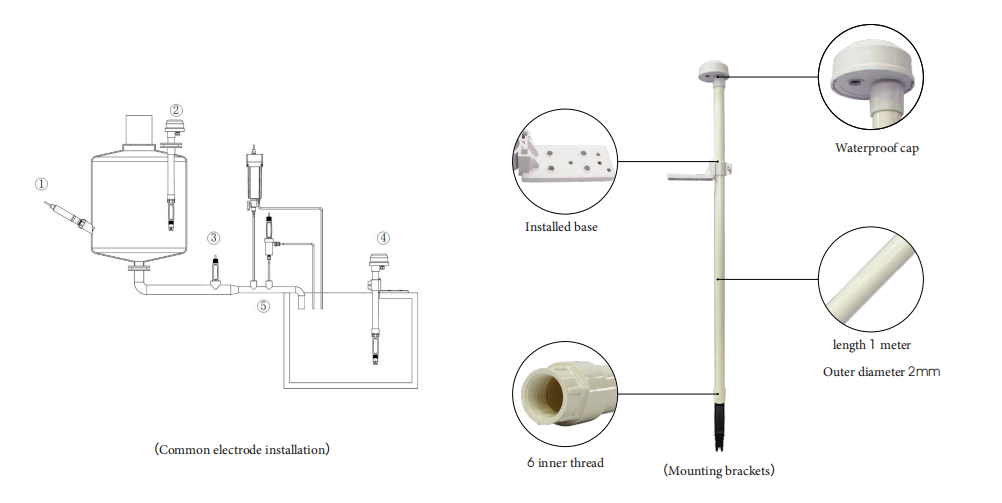

Installation

1666764192(1)

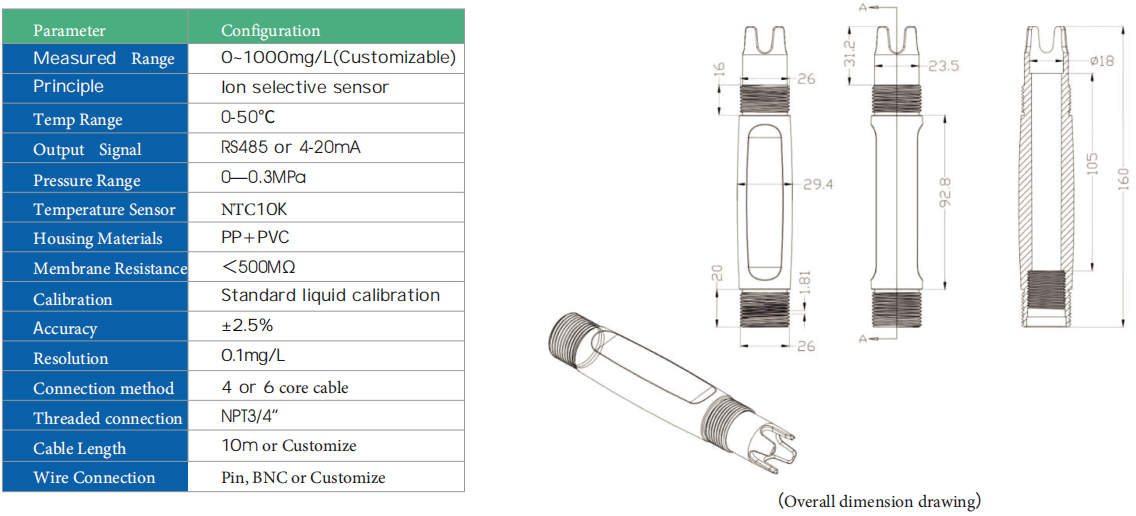

Technicals

1666767118(1)
