Digital sensor Fluoride Chloride Chloride Potassium Nitrate ion for wastewater sensor CS6710AD

Short Description:

CS6710AD digital fluoride ion sensor uses a solid membrane ion selective electrode for testing fluoride ions floating in
water, which is fast, simple, accurate and economical.
The design adopts the principle of single-chip solid ion selective electrode, with high measurement accuracy. Double salt
bridge design, longer service life.
The patented fluoride ion probe, with an internal reference fluid at a pressure of at least 100KPa (1Bar), seeps extremely
slowly from the microporous salt bridge. Such a reference system is very stable and the electrode life is longer than the ordinary.

Model NO.: CS6710AD
Waterproof Grade: IP68/NEMA6P

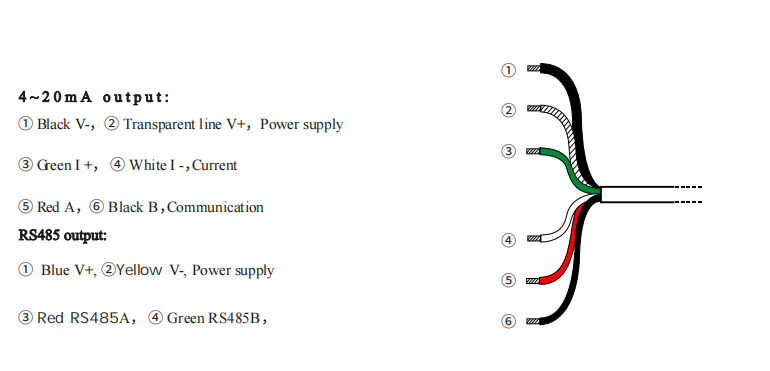

Output: MODBUS RS485/4~20mA
Calibration: Calibration of standard fluids and Alignment
Trademark: twinno

Send email to us Download as PDF

Product Detail

Product Tags

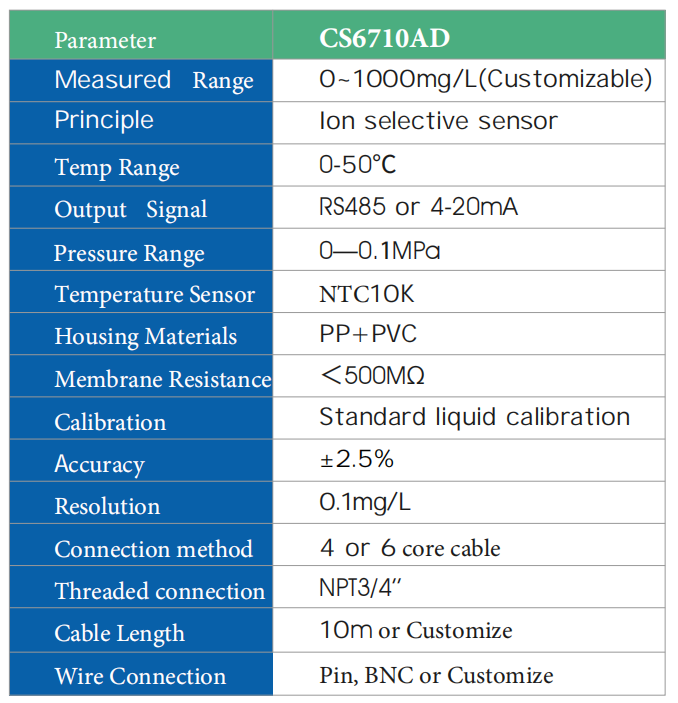

CS6710AD Digital ISE Sensor Series

Description

bridge design, longer service life.The patented fluoride ion probe, with an internal reference fluid at a pressure of at least 100KPa (1Bar), seeps extremely slowly from the microporous salt bridge. Such a reference system is very stable and the electrode life is longer than the ordinary.

Features

1.large sensitive area fast response, stable signal PP material，Work well at 0~50℃。

2.The lead is made of pure copper, which can directly realize remote transmission, which is more accurate and stable than the lead signal of copper-zinc alloy.
