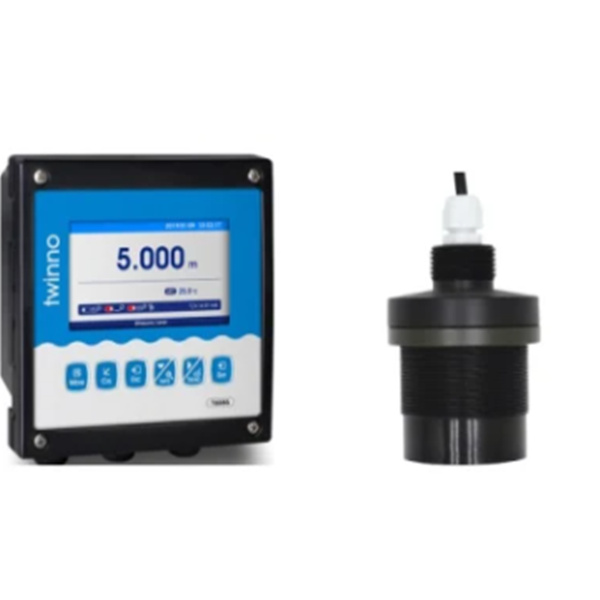

Digital Water Liquid Level Meter Ultrasonic Level Meter Sensor CS6085D

Short Description:

Intelligent integrated measuring instrument is a transducer and built-in intelligent circuit control system of integrated measurement instrument, is to measure the probe surface to liquid, object surface distance, is a contactless, high reliability, high cost performance, easy installation and maintenance material, liquid level measurement instrument, widely used in non-contact measurement distance, reliable application to measuring the surface position of water, sewage, glue, mud or open channel flow, etc.


  • Model NO.: CS6085D
  • Appliance: Food Analysis, Medical Research, Biochemistry
  • Installation Type: Wall-Mounted Type
  • Probe Type: Electrode Type
  • IP Rating: IP68
  • Trademark: twinno

Product Detail

Product Tags

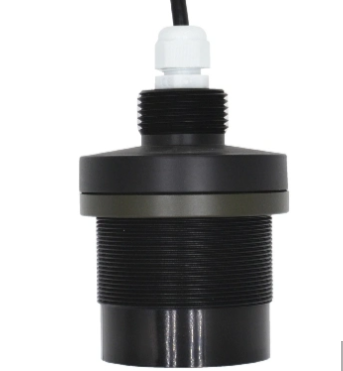

CS6085D  Ultrasonic Level Sensor

Digital liquid level Sensor                            Digital liquid level Sensor

Description

Intelligent integrated measuring instrument is a transducer and built-in intelligent circuit control system of integrated measurement instrument, is to measure the probe surface to liquid, object surface distance, is a contactless,high reliability, high cost performance, easy installation and maintenance material, liquid level measurement instrument, widely used in non-contact measurement distance, reliable application to measuring the surface position of water, sewage, glue, mud or open channel flow, etc.

Features

1. Adopt a fully closed probe, integrated casting seamless, convenient to use, effectively protect the probe and circuit, and extend the service life.
2. Strip analysis and processing technology, the one-in-one liquid level instrument has a signal analysis and processing CPU system built-in to automatically judge the true and false echo signals to ensure the authenticity, reliability and stability of the data.
3. Built-in intelligent temperature tonic circuit, better performance, material level,liquid level, range measurement, data transmission integration completion, higher
cost performance.
4. Real-time transmission of digital information, can be stably transmitted over long distances.

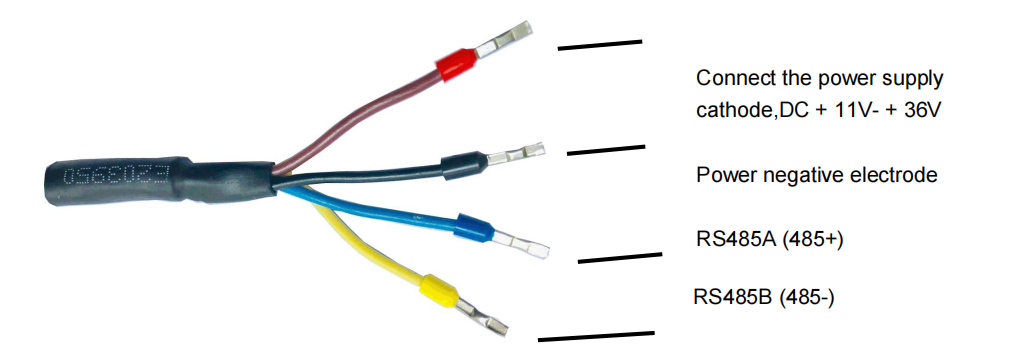

Wire
1666856800(1)

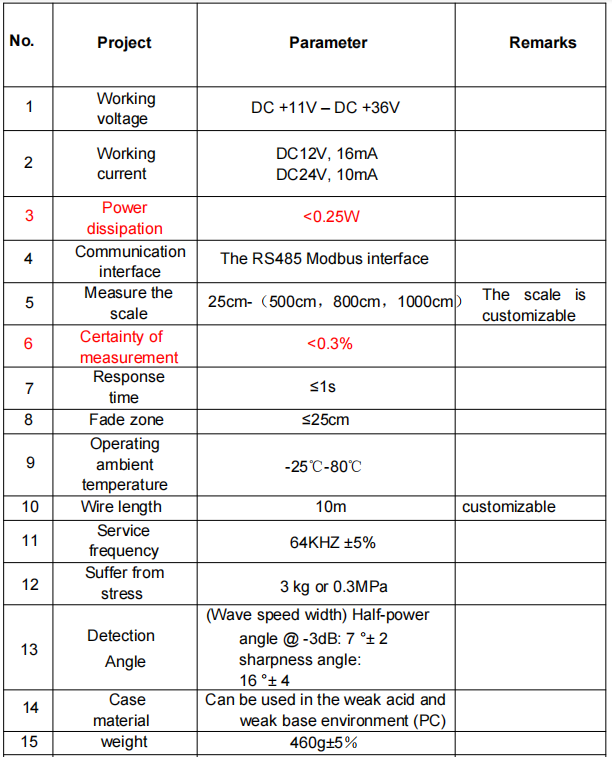

Technicals

1666857137(1)
