Industrial Online Analyzer Ammonia Nitrogen Sensor Digital RS485 CS6714SD

Short Description:

Digital ISE Sensor Series CS6714SD Ammonium Ion sensor is solid membrane ion selective electrodes, used to test ammonium ions in water, which can be fast, simple, accurate and economical;The design adopts the principle of single-chip solid ion selective electrode, with high measurement accuracy;PTEE large-scale seepage interface, not easy to block, anti-pollution Suitable for wastewater treatment in the semiconductor industry, photovoltaics, metallurgy, etc. and pollution source discharge monitoring;High-quality imported single chip, accurate zero point potential without drift.

Customized support:: OEM, ODM
Model Number:: CS6714SD
Type:: Ammonia Nitrogen Sensor
Certification:: CE ISO

Send email to us Download as PDF

Product Detail

Product Tags

Digital ISE Sensor Series CS6714SD

CS6714SD Ammonium Ion sensor is a solid membrane ion-selective electrode used to test ammonium ions in water, which can be fast, simple, accurate, and economical.

The design adopts the principle of single-chip solid ion-selective electrode, with high measurement accuracy;

PTEE large-scale seepage interface, not easy to block, anti-pollution. Suitable for wastewater treatment in the semiconductor industry, photovoltaics, metallurgy, etc. and pollution source discharge monitoring;

High-quality imported single chip, accurate zero point potential without drift.

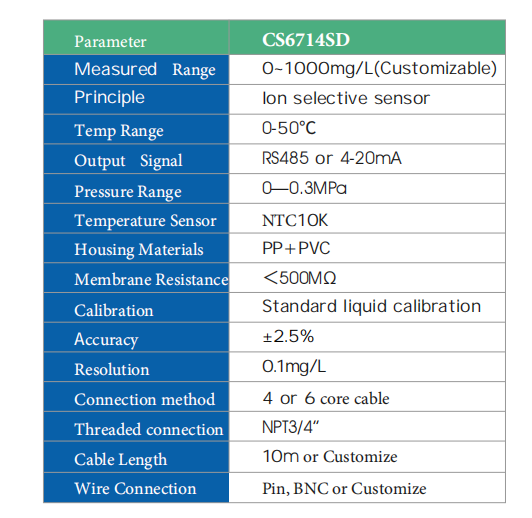

Parameter	CS6714SD
Measured Range	0~1000 mg/L (Customizable)
Principle	Ion selective sensor
Temp Range	0-50℃
Output Signal	RS485 or 4-20 mA
Pressure Range	0—0.3MPa
Temperature Sensor	NTC10K
Housing Materials	PP + PVC
Membrane Resistance	<500MΩ
Calibration	Standard liquid calibration
Accuracy	±2.5%
Resolution	0.1 mg/L
Connection method	4 or 6 core cable
Threaded connection	NPT 3/4"
Cable Length	10 m or Customize
Wire Connection Pin, BNC, or Customize
