Product Overview
CS7805DL digital low-range turbidity sensor: The turbidity sensor is based on infrared scattered light technology, that is, the infrared light emitted by the light source will be scattered during the transmission process through the sample to be
measured, and the scattered light intensity is proportional to the turbidity. The turbidity sensor sets a scattering light receiver in the direction of 90°, and obtains the turbidity value by analyzing the intensity of this group of scattered light.
Applied to municipal management water quality detection, circulating cooling water, activated carbon filter effluent, membrane filter effluent, water plant effluent, secondary water supply, etc.
Product characteristics
▪ Built-in bubble elimination system to avoid interference with measured values
▪ Easy cleaning and maintenance, long correction cycle
▪ Good reproducibility, unaffected by sample flow rate and pressure
▪ Long life and low attenuation of light source
▪ Digital signal output, stable transmission without interference
Performance index
| Argument | Disposition |
| Range | 0.001 20.00 NTU |
| Overall Dimension | 400*300*170mm |
| weight | 5.4KG |
| Accuraty | ±2% |
| Pressure Range | 0.2MPa |
| Calibration | Standard liquid calibration, water sample calibration |
| Stream Velocity | 200-400mL/min |
| Supply | 9~36VDC |
| Export | MODBUS RS-485 |
| Storage Temperature | -15℃ to 50℃ |
| Operating Temperature | 0 ° C to 45 ° C |
| Class of Protection | IP65 |
| Cable Length | 10 m cable is standard and can be extended up to 100 m |
| Installation Mode | Circulating Type |
Product Size

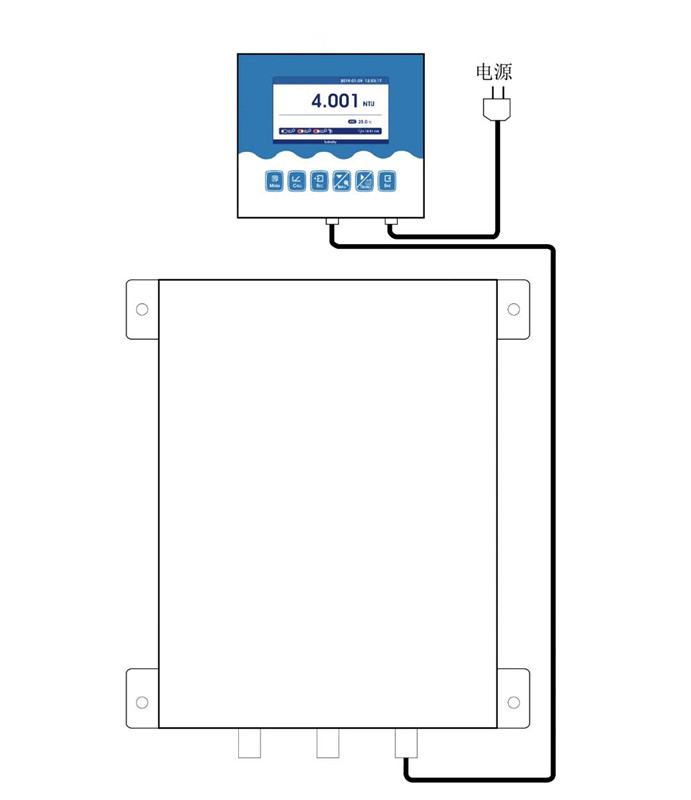

Installation Diagram
