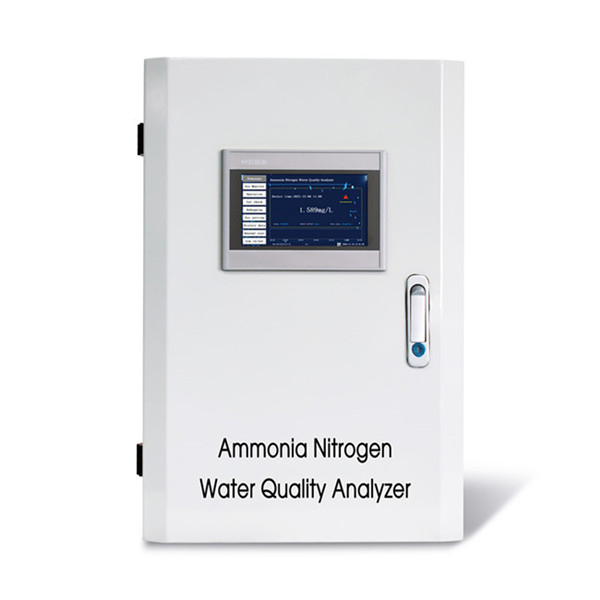

T9001 Ammonia Nitrogen On-line Automatic Monitoring

Short Description:

1.Product Overview:
Ammonia nitrogen in water refers to ammonia in the form of free ammonia, which mainly comes from decomposition products of nitrogen-containing organic matter in domestic sewage by microorganisms, industrial wastewater such as coking synthetic ammonia, and farmland drainage. When the content of ammonia nitrogen in water is high, it is toxic to fish and harmful to human beings in varying degrees. The determination of ammonia nitrogen content in water is helpful to evaluate the pollution and self-purification of water, so ammonia nitrogen is an important indicator of water pollution.
The analyzer can work automatically and continuously for a long time without attendance according to the site settings. It is widely used in industrial pollution source discharge wastewater, municipal sewage treatment plant wastewater, environmental quality surface water and other occasions. According to the complexity of site test conditions, the corresponding pretreatment system can be selected to ensure the test process is reliable,test results are accurate, and fully meet the needs of different occasions.
This method is suitable for wastewater with ammonia nitrogen in the range of 0-300 mg/L. Excessive calcium and magnesium ions, residual chlorine or turbidity may interfere with the measurement.


  • Range: Suitable for wastewater with ammonia nitrogen in the range of 0-300 mg/L.
  • Test Methods: Salicylic acid spectrophotometric colorimetry
  • Sampling period: Time interval (adjustable), integral hour or trigger measurement mode can be set.
  • Human-machine operation: Touch screen display and instruction input
  • Data storage: No less than half a year data storage
  • Input interface: Switch quantity
  • Output interface: Two RS232 digital output, One 4-20mA analog output

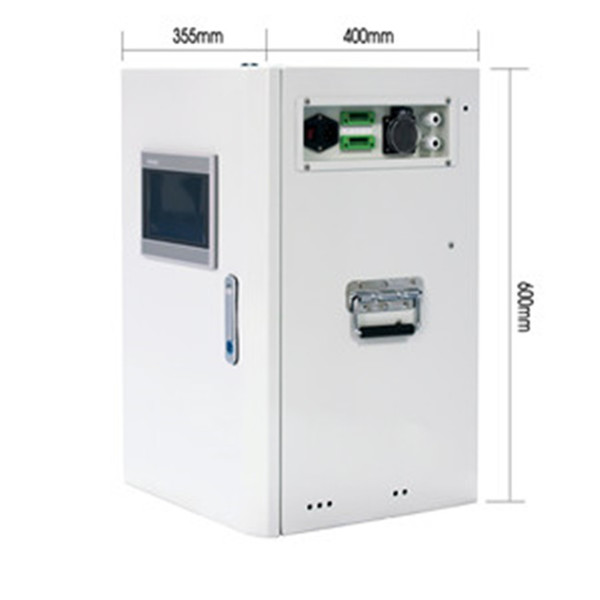

  • Dimensions: 355×400×600(mm)

Product Detail

Product Tags

T9001 Ammonia Nitrogen On-line Automatic Monitoring

Ammonia Nitrogen On-line Automatic Monitoring                               Automatic Monitoring

Product Principle:

This product adopts salicylic acid colorimetric method. After mixing water sample and masking agent,ammonia nitrogen in the form of free ammonia or ammonium ion in alkaline environment and sensitizing agent reacts with salicylate ion and hypochlorite ion  to form a colored complex.The analyzer detects the colour change and converts the change into ammonia nitrogen value and output it.The amount of coloured complex formed is equal to the amount of ammonia nitrogen.

This method is suitable for wastewater with ammonia nitrogen in the range of 0-300 mg/L. Excessive calcium and magnesium ions, residual chlorine or turbidity may interfere with the measurement.

Technical Parameters:

No.

Name

Technical Parameters

1

Range

Suitable for wastewater with ammonia nitrogen in the range of 0-300 mg/L.

2

Test Methods

Salicylic acid spectrophotometric colorimetry

3

Measuring range

0~300mg/L(Grading 0~8 mg/L,0.1~30 mg/L,5~300 mg/L)

4

Detection Lower limit

0.02

5

Resolution

0.01

6

Accuracy

±10% or ±0.1mg/L(take the larger value)

7

Repeatability

5% or 0.1mg/L

8

Zero Drift

±3mg/L

9

Span Drift

±10%

10

Measurement cycle

Minimum20 minutes. Color chromogenic time can be modified in 5-120min according to site environment.

11

Sampling period

Time interval (adjustable), integral hour or trigger measurement mode can be set.

12

Calibration cycle

Automatic calibration (1-99 days adjustable), according to actual water samples, manual calibration can be set.

13

Maintenance cycle

Maintenance interval is more than one month, about 30 minutes each time.

14

Human-machine operation

Touch screen display and instruction input.

15

Self checking protection

Working status is self-diagnostic, abnormal or power failure will not lose data. Automatically eliminates residual reactants and resumes work after abnormal reset or power failure.

16

Data storage

No less than half a year data storage

17

Input interface

Switch quantity

18

Output interface

Two RS232 digital output, One 4-20mA analog output

19

Working Conditions

Working indoors; temperature 5-28℃; relative humidity≤90% (no condensation,no dew)

20

Power Supply and Consumption

 AC230±10%V, 50~60Hz, 5A

21

Dimensions

355×40600(mm)
