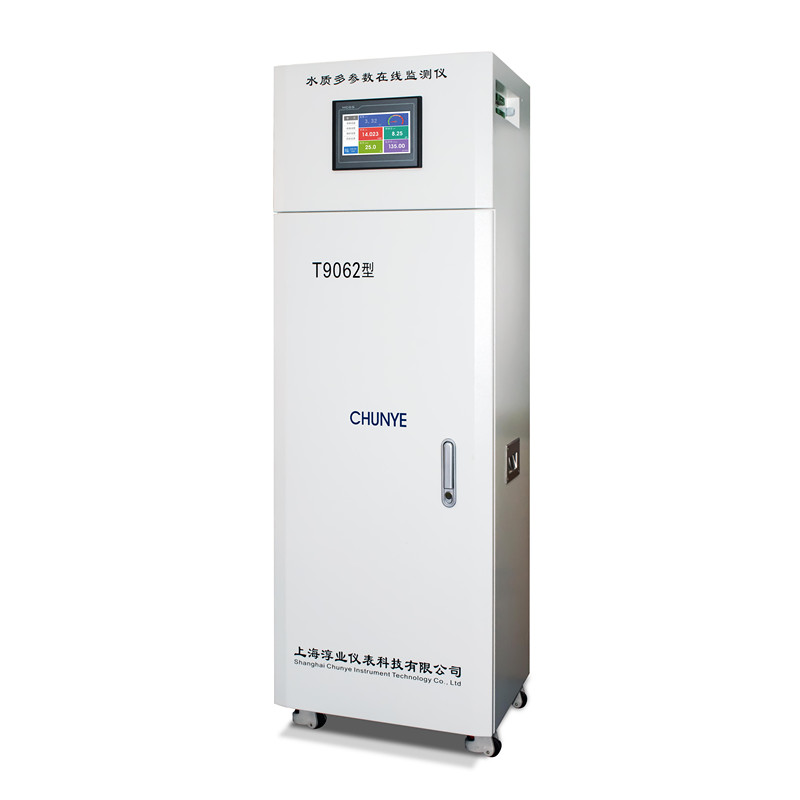

T9062 Multi-parameter Online Water Quality Monitor

Short Description:

Multi-parameter Online Water Quality Monitor is an advanced analytical instrument designed for the continuous, real-time measurement of multiple critical water quality parameters in a single integrated platform. It simultaneously monitors indicators such as pH, dissolved oxygen, conductivity, turbidity, temperature, ammonia nitrogen, and more. This monitor is widely used in drinking water treatment, wastewater management, environmental monitoring, and industrial process control. Equipped with high-precision sensors and automatic temperature compensation, it delivers reliable and stable data. The system supports remote data transmission via Modbus RS485, 4-20mA, or other industrial protocols, enabling seamless integration into SCADA or IoT platforms. Its modular design, self-cleaning function, and user-friendly interface reduce maintenance needs and operational costs. By providing comprehensive and real-time water quality assessment, this monitor plays a vital role in ensuring water safety, optimizing treatment processes, and meeting regulatory compliance efficiently.

Send email to us Download as PDF

Product Detail

Product Tags

T9062 Multi-parameter Online Water Quality Monitoring system

DO sensor Fish Pond Aquaculture Aquarium Online Optical Dissolved Oxygen Meter

Function

For online monitoring of water supply effluent, pipeline water quality, secondary supply in residential areas, and industrial processes.

Features and Advantages

Establish a water quality information database for effluent and pipeline systems

Multi-parameter online monitoring, including: pH, ORP, conductivity (TDS), salinity, residual chlorine/chlorine dioxide/dissolved ozone, turbidity, COD, color, hardness, ammonia nitrogen, dissolved oxygen, temperature, etc.

The installation is convenient, with the system featuring only one sample inlet, one waste liquid outlet, and one power supply cable.

Typical Use

This instrument is a special instrument for detecting oxygen content in liquids in environmental protection sewage related industries. It has the characteristics of fast response, stability, reliability, and low use cost, widely used in large-scale water plants, aeration tanks, aquaculture, and sewage treatment plants.Designed for online monitoring of water supply and outlet, water quality of pipe network and secondary water supply of residential area.

T9062 Multi-parameter Online Water Quality Monitoring system

Features

1.Builds water quality database of outlet and pipe network system;

2.Multi-parameter on-line monitoring system can support six parameters at the same time. Customizable parameters.

3.Easy to install. The system has only one sample inlet, one waste outlet and one power supply connection;

4.The historical record: Yes

5.Installation mode: Vertical type;

6.The sample flow rate is 400 ~ 600mL/min;

7.4-20mA or DTU remote transmission. GPRS;

8.Anti-explosion.

Electrical connections

Electrical connection The connection between the instrument and the sensor: the power supply, output signal, relay alarm contact and the connection between the sensor and the instrument are all inside the instrument. The length of the lead wire for the fixed electrode is usually 5-10 meters, and the corresponding label or color on the sensor Insert the wire into the corresponding terminal inside the instrument and tighten it.

Instrument installation method

Technical specification

order	factor	measuring range	certainty of measurement
1	pH	0.01～14.00pH	±0.05pH
2	ORP	-1000～＋1000mV	±3mV
3	conductivity	0.01～200.0～2000μs/cm	±1%F.S
4	TDS	0.01～2000mg/L	±1%F.S
5	turbidity	0.01～20.00NTU～400.0NTU	±1%F.S
6	residual chlorine	0.01～5.00mg/L～20.00mg/L	±1%F.S
7	chlorine dioxide	0.01～5.00mg/L～20.00mg/	±1%F.S
8	Total chlorine	0.01～5.00mg/L～20.00mg/L	±1%F.S
9	ozone	0.01～5.00mg/L～20.00mg/L	±1%F.S
10	hardness	0.01～1000mg/L	±5%
11	COD	0.1～500.0mg/L	±5%
12	tone	0.1 to 500.0 degrees	±5%
13	ammonia nitrogen	0.01～100.0mg/L	±5%
14	fluorinion	0.01～100.0mg/L	±5%
15	chloridion	0.01～1000mg/L	±5%
16	potassium ion	0.01～1000mg/L	±5%
17	dissolved oxygen	0.01～20.00mg/L	±1%F.S
18	Temp	0.1～60.0℃	±0.3℃
19	signal output	1 RS485 MODBUS RTU port; multiple 4-20mA ports (depending on measurement parameters)
20	Control output	3-way relay, alarm setting
21	history	have
22	Historical curve	have
23	GPRS remote transmission	Yes, optional
24	way to install	vertical
25	Water-like connection	Quick-connect or standard G1/2; exhaust port, quick-connect or standard G1/2; or custom
26	Water-like temperature	5～40℃
27	Water-like flow velocity	200～600mL/min
28	levels of protection	IP54 or custom IP65
29	Power Supply Voltage	100～240VAC or 24VDC
30	Instrument power	About 20W
31	instruments weight	Approximately 45KG
32	outline dimension	Height 1470 mm * Width 500 mm * Depth 400 mm
