T9050 Multi-parameter water quality on-line monitor
Introduction:
1.Display 7″ color touch screen, operation interface, easy to operate
2. Data storage data storage, view, export function, set the storage cycle
3.Output a: 1 channel RS485 Modbus RTU standard protocol;
b: 2 switches, program control output (self-priming pump, automatic cleaning)
c: 5-channel 4-20mA program setting output (optional),Password protection to correct the data, to prevent the non-professional action
Features:

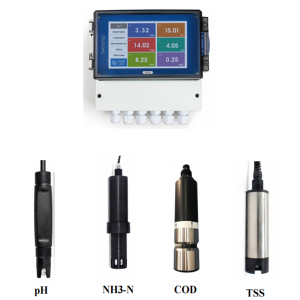

1. Digital intelligent sensor can be arbitrarily combined, plug and play, and the controller can be recognized automatically;
2. It can be customized for single-parameter, double-parameter and multi-parameter controllers,which can save costs better;
3. Automatically read the internal calibration record of the sensor, and replace the sensor without calibration, thus saving more time;
4. New circuit design and construction concept, low failure rate, strong anti-interference ability;
5.IP65 protection level, applicable to indoor and outdoor installation requirements;

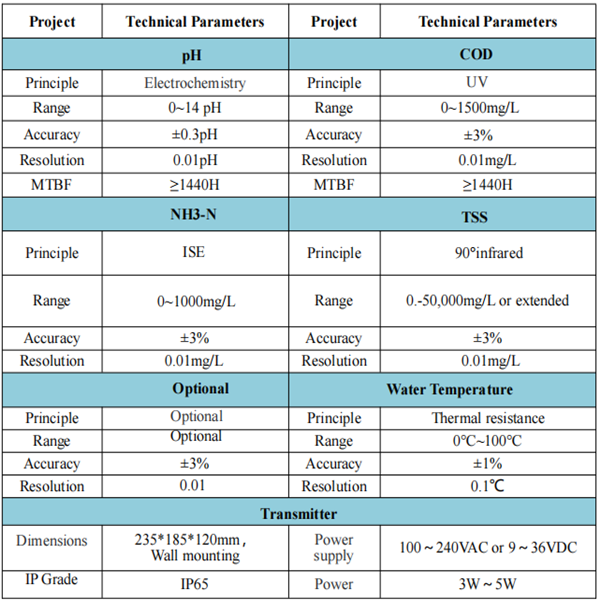

Technical parameters:

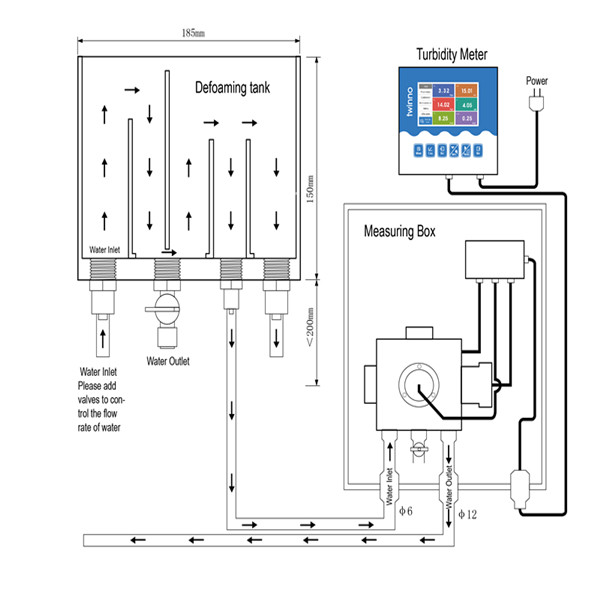

Instrument installation method
Embedded installation Wall mount
