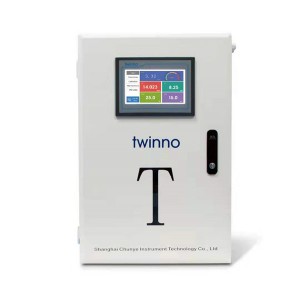

Multi-parameter Online Aquaculture Monitoring System NH4+ DO NO3- pH EC T9040

Short Description:

Typical Application:
Designed for online monitoring of water supply and outlet, water quality of pipe network and secondary water supply of residential area.
Drinking-Water Quality Multi-parameter Online Monitoring System pH ORP EC TDS Salinity DO FCL Turbidity TSS NO3 NO2 NH3 NH4 Hardness Temperature Made in China

Model NO.: T9040
Appliance: water supply and outlet, water quality
Certification: RoHS, CE, ISO9001
Trademark: twinno
Type: pH/ORP/TDS/EC/Salinity/DO/FCL
Dissolved Ozone: 0.01~5.00mg/L; +/-1%F.S;

Send email to us Download as PDF

Product Detail

Product Tags

T9040 Water Quality Multi-parameter online monitoring system

Features:

1.Builds water quality database of outlet and pipe network system;

2.Multi-parameter on-line monitoring system can support six parameters at the same time. Customizable parameters.

3.Easy to install. The system has only one sample inlet, one waste outlet and one power supply connection;

4.The historical record: Yes

5.Installation mode: Vertical type;

6.The sample flow rate is 400 ~ 600mL/min;

7.4-20mA or DTU remote transmission. GPRS;

8.Anti-explosion.

Technical specifications

pH	0.01～14.00pH；±0.05pH
Turbidity	0.01～20.00NTU；±1.5%F.S
FCL	0.01～20mg/L；±1.5%F.S
TDS	0.01～250g/L；±1.5%F.S
ISE	0.01～1000mg/L；±1.5%F.S
Temp	0.1～100.0℃；±0.3℃
Signal Output	RS485 MODBUS RTU
Historical Notes	Yes
Historical curve	Yes
Installation	Wall Mounting
Water Sample Connection	3/8’’ NPTF
Water Sample Temperature	5～40℃
Water Sample speed	200～400mL/min
IP Grade	IP54
Power Supply	100～240VAC or 9～36VDC
Power Rate	3W
Gross Weight	40KG
Dimension	138*138mm
Installation methods	600450190mm
