High Accuracy Digital Rs485 Tds Conductivity Meter Ec Meter And Sensor For Water CS3701D

Short Description:

CS3701D Digital Conductivity Sensor: Conductivity sensor technology is an important field of engineering technology research, suitable for low-conductivity applications in semiconductor, electric power, water and pharmaceutical industries. These sensors are compact and easy to use. Determining the specific conductivity of an aqueous solution is more and more important for determining the impurities in the water. The measurement accuracy is greatly affected by factors such as temperature changes, surface polarization of contact electrodes, and cable capacitance.

Model Number: CS3701D
Output Signal: RS485 or 4-20mA
Type: TDS Salinity Sensor
Place of Origin: Shanghai
Brand Name: Chunye
Housing Materials: PP+PVC

Send email to us Download as PDF

Product Detail

Product Tags

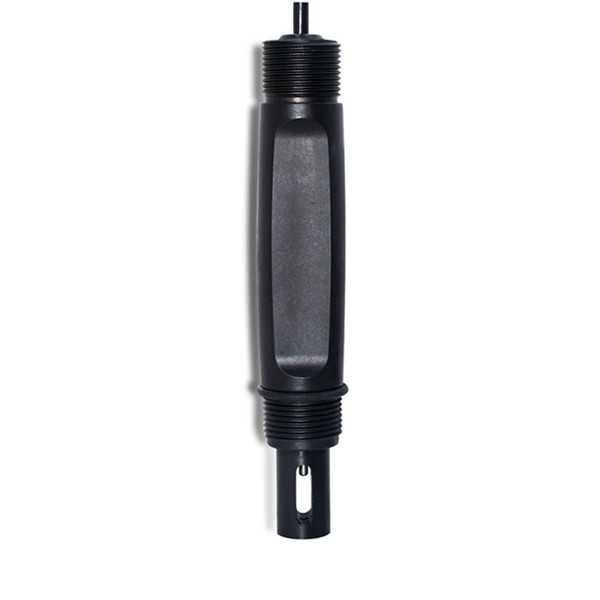

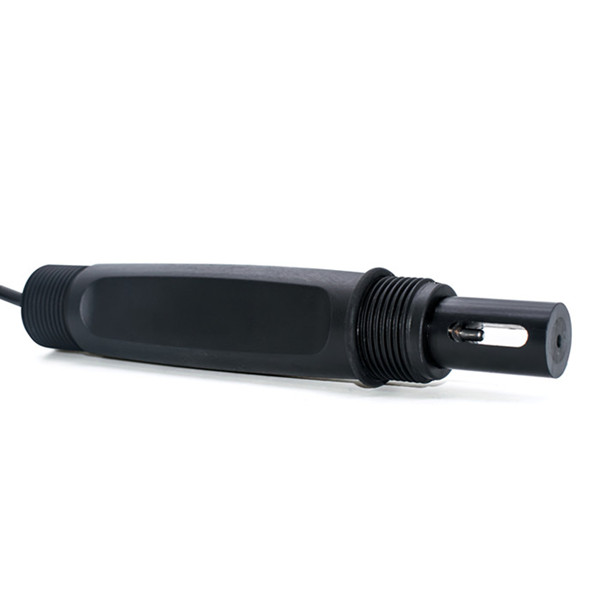

CS3701D Digital Conductivity Sensor Series

Ec Meter And Sensor For Water

Features:

1.Round bulbs, large sensitive area fast response, stable signal

2.PP material，Work well at 0~60℃

3.The lead is made of pure copper, which can directly realize remote transmission, which is more accurate and

stable than the lead signal of copper-zinc alloy

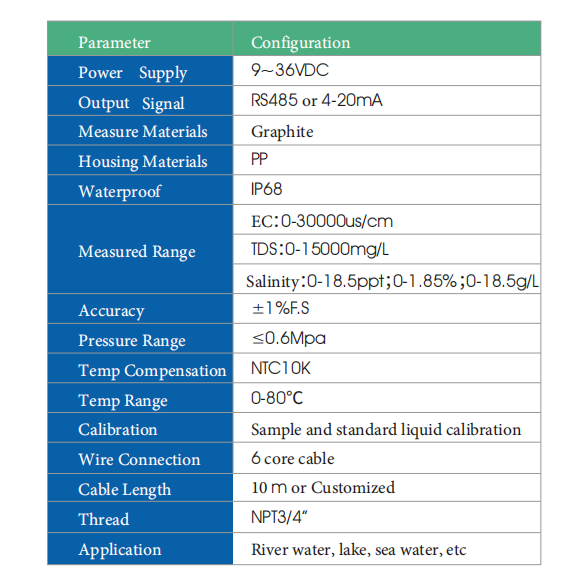

Technicals:

Model NO.	CS3701D
Power/Outlet	9~36VDC/RS485 MODBUS RTU or 4-20mA
Measure material	Graphite (2 Electrode)
Housing material	PP
Waterproof grade	IP68
Measurement range	Con:1-30000us/cm; TDS：0-15000mg/L Salinity：0-18ppt;；0-1.8%；0-18g/L
Accuracy	±1%F.S
Pressure resistance	≤0.6Mpa
Temperature compensation	NTC10K
Temperature range	0-80℃
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 10m cable, can be extended to 100m
Installation thread	NPT3/4’’
Application	General application, river, lake , drink water,etc.

FAQ:

Q1: What's your business range?
A: We manufacture Water quality analysis instruments and provide dosing pump, diaphragm pump, water

pump, pressure instrument, flow meter, level meter and dosing system.
Q2: May I visit your factory?
A: Of course, our factory is located in Shanghai, welcome your arrival.
Q3: Why should I use Alibaba Trade Assurance orders?
A: Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales, returns, claims etc.
Q4: Why choose us?
1. We have more than 10 years of industry experience in water treatment.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and
