Manufacturer Digital Dissolved O3 Ozone Sensor Water Monitor Meter CS6530D

Short Description:

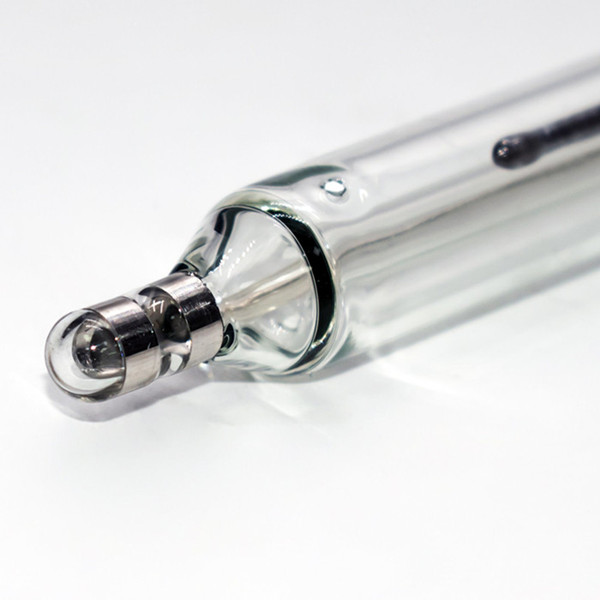

Potentiostatic method electrode is used to measure residual chlorine or dissolved ozone in water. The potentiostatic method measurement method is to maintain a stable potential at the electrode measuring end, and different measured components produce different current intensities under this potential. It consists of two platinum electrodes and a reference electrode to form a micro current measurement system. The residual chlorine or dissolved ozone in the water sample flowing through the measuring electrode will be consumed. Therefore, the water sample must be kept flowing continuously through the measuring electrode during measurement. The potentiostatic method measurement method uses a secondary instrument to continuously and dynamically control the potential between the measuring electrodes, eliminating the inherent resistance and oxidation-reduction potential of the measured water sample, so that the electrode can measure the current signal and the measured water sample concentration A good linear relationship is formed between them, with a very stable zero point performance, ensuring accurate and reliable measurement

Model Number:: CS6530D
Output Signal:: RS485 or 4-20mA
Type:: Digital Dissolved Ozone Sensor
Place of Origin:: Shanghai
Brand Name:: Chunye
Housing Materials:: Glass+POM

Send email to us Download as PDF

Product Detail

Product Tags

CS6530D Digital Dissolved Ozone Sensor

Features:

1. Power supply and output isolation design to ensure electrical safety

2. Built-in protection circuit for power supply and communication chip, strong anti-interference ability

3. With comprehensive protection circuit design, it can work reliably without additional isolation equipment

4. The circuit is built inside the electrode, which has good environmental tolerance and easier installation and operation

5. RS-485 transmission interface, MODBUS-RTU communication protocol, two-way communication,can receive remote commands

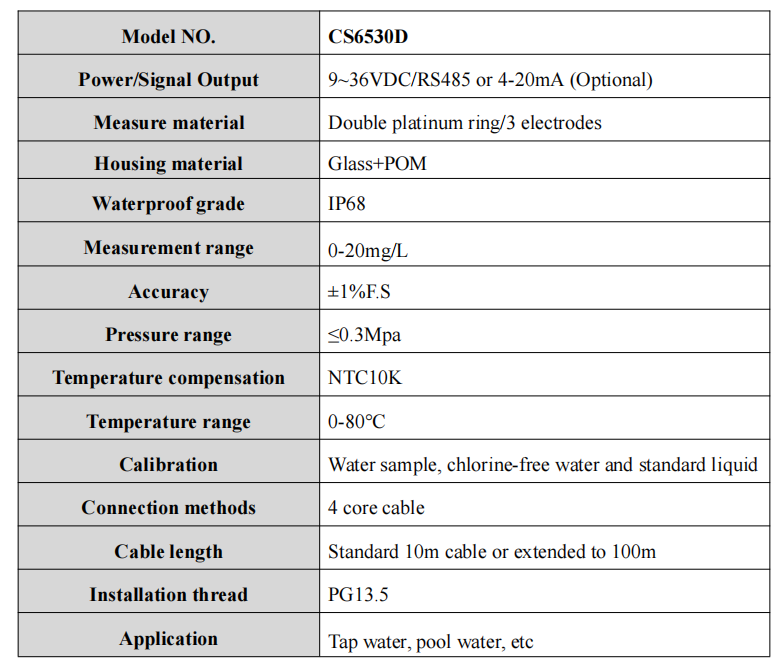

Technicals:

FAQ:

Q1: What’s your business range?
A: We manufacture Water quality analysis instruments and provide dosing pump, diaphragm pump, water

pump, pressure instrument, flow meter, level meter and dosing system.
Q2: May I visit your factory?
A: Of course, our factory is located in Shanghai, welcome your arrival.
Q3: Why should I use Alibaba Trade Assurance orders?
A: Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales, returns, claims etc.
Q4: Why choose us?
1. We have more than 10 years of industry experience in water treatment.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and
