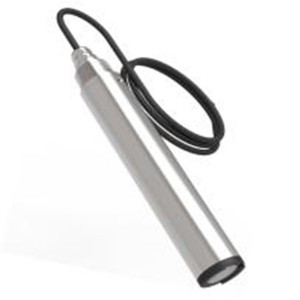

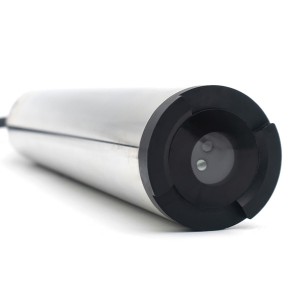

CS6400D Chlorophyll Sensor
Description
chlorophyll A who has absorption peaks and emission peaks in the spectrum. The
absorption peaks emit monochromatic light into the water,chlorophyll A in the water
absorbs the energy of monochromatic light,releasing monochromatic light of emission
peak of another wavelength. The light intensity emitted by cyanobacteria is
proportional to the content of chlorophyll A in water.
Features
Based on the Fluorescent measuring target parameter of pigment,can be identified
before affected by potential water bloom.
2. Without extraction or other treatment, rapid detection to avoid the impact of long
shelving the water sample.
3.Digital sensor,high anti-jamming capacity and far transmission distance.
4. Standard digital signal output,can achieve integration and networking with other
equipment without controller.
Technicals
| Measurement range | 0-500 ug/L |
| Measurement Accuracy | The signal level of 1ppb rhodamine WT dye is ±5% of the corresponding value |
| Pressure range | ≤0.4Mpa |
| Calibration | Deviation value calibration,slope Calibration |
| Requirements | The distribution of chlorophyll in water is very uneven, so multi-point monitoring is recommended. The turbidity of water is lower than 50NTU. |
| Main material | Body:SUS316L + PVC(fresh water),Titanium alloy(marine);O-ring:Fluorine Rubber; Cable:PVC |
| Power supply | DC:12VDC |
| Storage temperature | -15- 65ºC |
| Measuring temperature | 0- 45ºC |
| Dimension | Sensor:Dia37mm*L 220mm |
| Weight | 0.8KG |
| Protective rate | IP68/NEMA6P |
| Cable length | Standard:10m,the maximum may be extended to 100m. |
