SC300LDO Portable dissolved oxygen meter (fluorescence method)

Short Description:

Introduction:

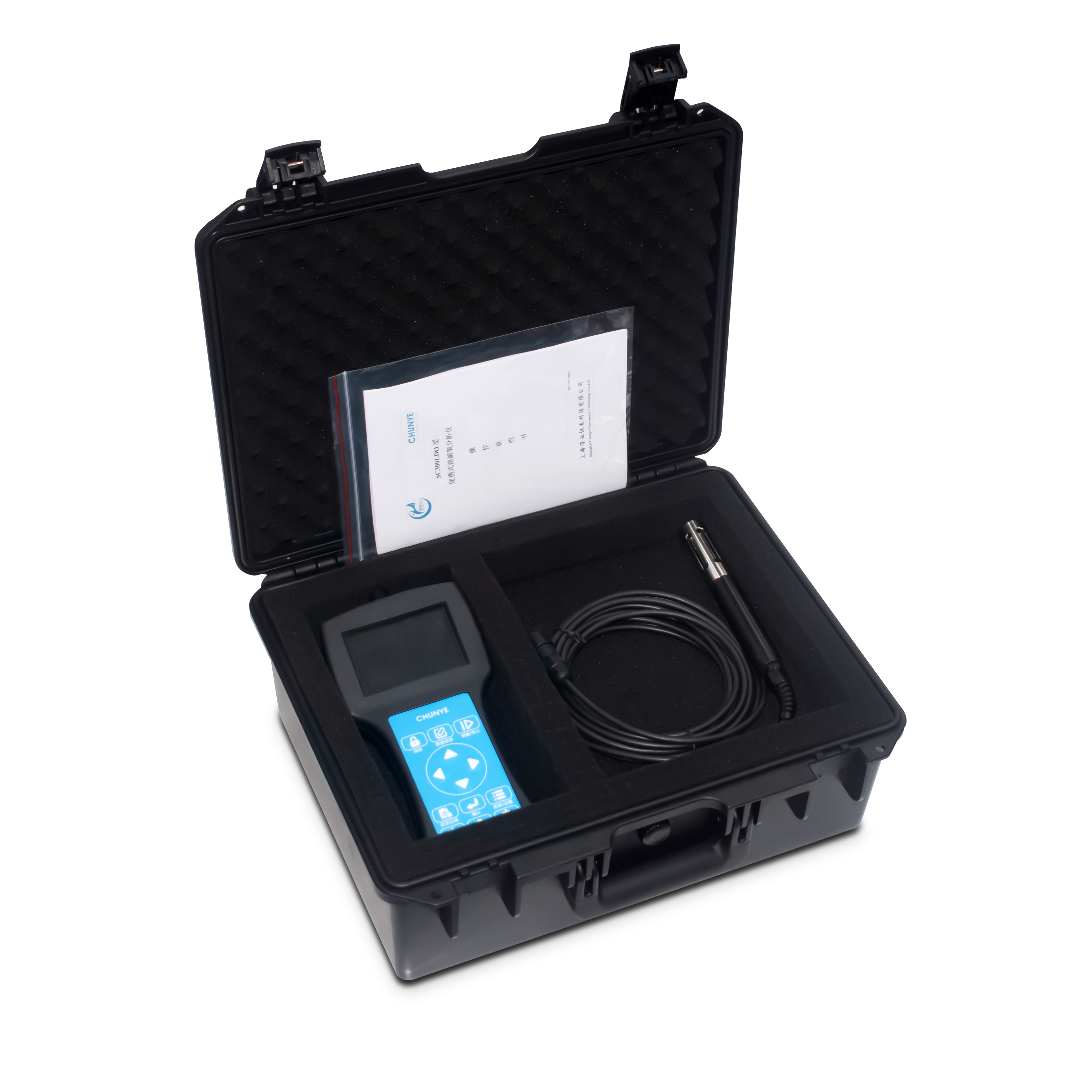

The SC300LDO portable dissolved oxygen analyzer consists of a portable instrument and a dissolved oxygen sensor. Based on the principle that specific substances can quench the fluorescence of active substances, the blue light emitted by a light-emitting diode (LED) is shone onto the inner surface of the fluorescent cap, and the fluorescent substances on the inner surface are excited and emit red light. By detecting the phase difference between the red light and the blue light and comparing it with the internal calibration value, the concentration of oxygen molecules can be calculated. The final value is output after automatic compensation for temperature and pressure.

Customized support:: OEM, ODM
Model Number:: SC300LDO
country of origin:: Shanghai
Certification:: CE,ISO14001,ISO9001
Product name:: Portable Dissolved Oxygen Meter
Function:: Online Arduino Lab Water Analyzer Aquarium Digital pH

Send email to us Download as PDF

Product Detail

Product Tags

SC300LDO Portable suspended matter analyzer

Specification：

1、Measuring range：0.1-100000 mg/L（Customizable range）

2、Accuracy: <±5% of reading (dependent on sludge homogeneity)

3、Resolution：0.1mg/L

4、Calibration: Standard solution calibration and sample water calibration

5、Shell material：sensor：SUS316L+POM；Mainframe case：ABS+PC

6、Storage temperature：-15-40℃

7、Operating temperature：0-40℃

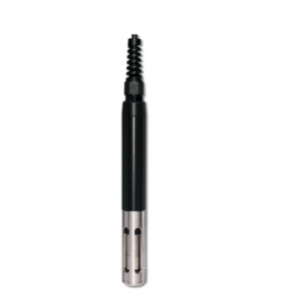

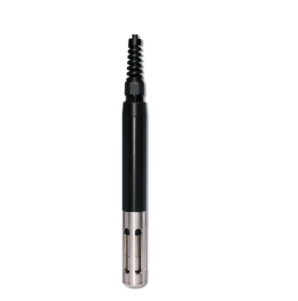

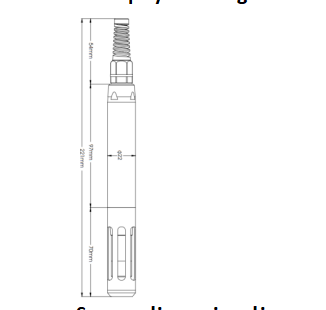

8、Sensor：size：diameter 22mm*length 221mm；Weight：0.35KG

9、Host size：235*118*80mm；Weight：0.55KG

10、IP grade：sensor：IP68；Host：IP67

11、Cable length: Standard 5-meter cable (extendable)

12、Display：3.5-inch color display screen with adjustable backlight

13、Data storage: 8MB of data storage space

14、Power supply method: 10000mAh built-in lithium battery

15、Charging and data export：Type-C
