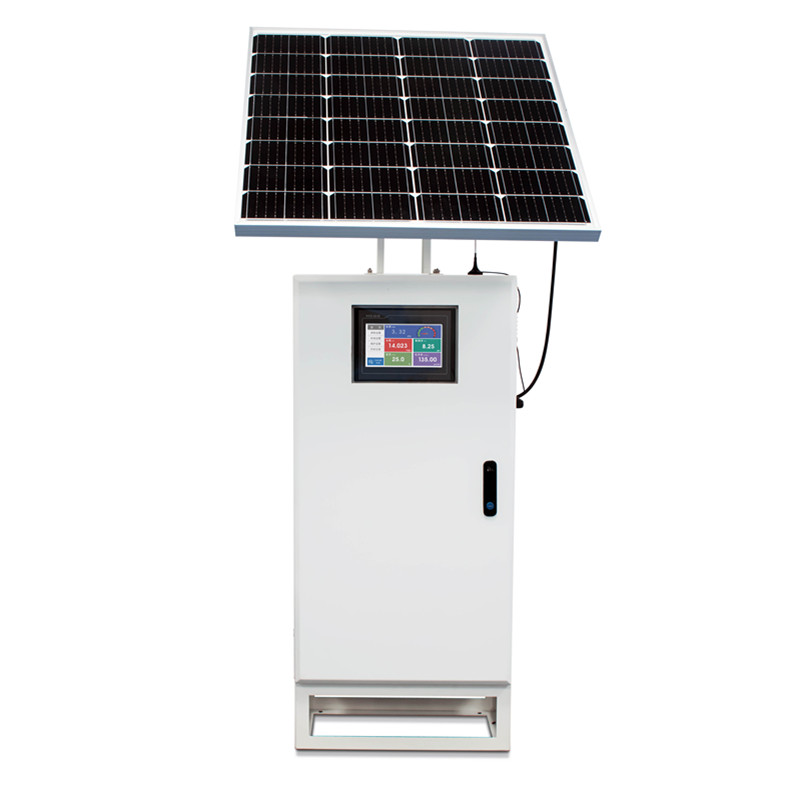

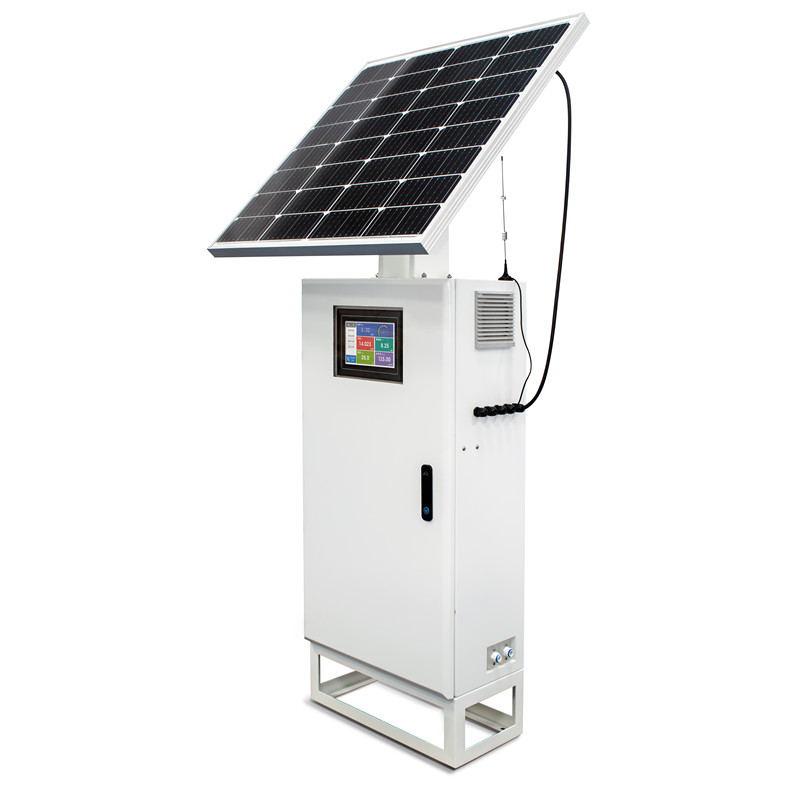

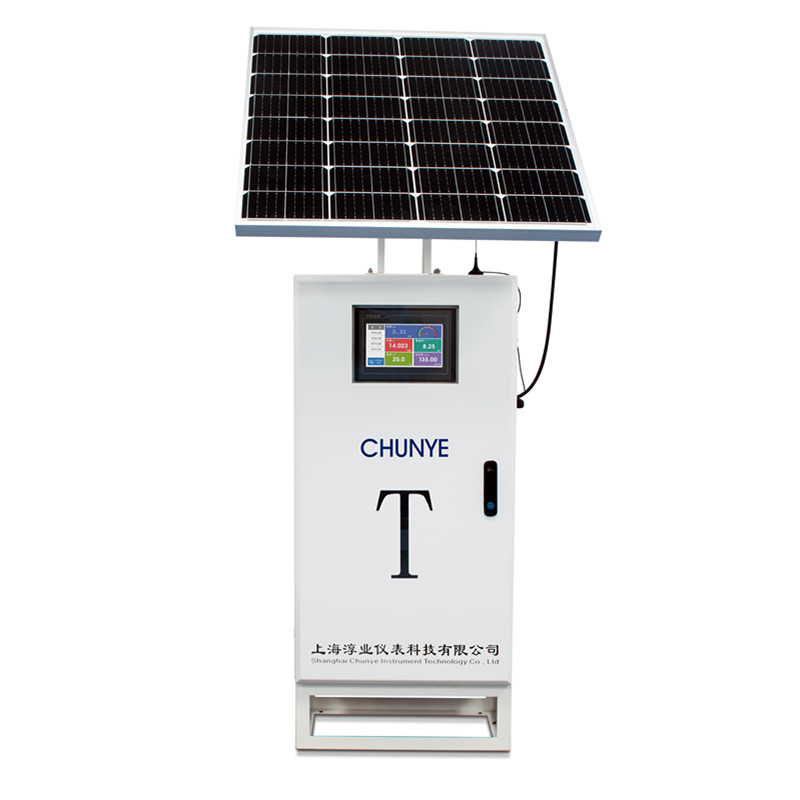

T9040L Multi-parameter Online Water Quality Monitor

Short Description:

Multi-parameter Online Water Quality Monitor is an advanced analytical instrument designed for the continuous, real-time measurement of multiple critical water quality parameters in a single integrated platform. It simultaneously monitors indicators such as pH, dissolved oxygen, conductivity, turbidity, temperature, ammonia nitrogen, and more. This monitor is widely used in drinking water treatment, wastewater management, environmental monitoring, and industrial process control. Equipped with high-precision sensors and automatic temperature compensation, it delivers reliable and stable data. The system supports remote data transmission via Modbus RS485, 4-20mA, or other industrial protocols, enabling seamless integration into SCADA or IoT platforms. Its modular design, self-cleaning function, and user-friendly interface reduce maintenance needs and operational costs. By providing comprehensive and real-time water quality assessment, this monitor plays a vital role in ensuring water safety, optimizing treatment processes, and meeting regulatory compliance efficiently.

Send email to us Download as PDF

Product Detail

Product Tags

T9040L Multi-parameter Online Water Quality Monitoring system

Function

For online monitoring of water supply effluent quality, pipeline water quality, and secondary water supply conditions in residential communities.

Features and Advantages

Establish a water quality information database for effluent and pipeline systems

Multi-parameter online monitoring, including: pH, ORP, conductivity (TDS), salinity, residual chlorine/chlorine dioxide/dissolved ozone, turbidity, COD, color, hardness, ammonia nitrogen, dissolved oxygen, temperature, etc.

The installation is convenient, with the system featuring only one sample inlet, one waste liquid outlet, and one power supply cable.

Typical Use

This instrument is a special instrument for detecting oxygen content in liquids in environmental protection sewage related industries. It has the characteristics of fast response, stability, reliability, and low use cost, widely used in large-scale water plants, aeration tanks, aquaculture, and sewage treatment plants.Designed for online monitoring of water supply and outlet, water quality of pipe network and secondary water supply of residential area.

T9040L Multi-parameter Online Water Quality Monitoring system

Technical specification

order	factor	measuring range	certainty of measurement
1	pH	0.01～14.00pH	±0.05pH
2	ORP	-1000～＋1000mV	±3mV
3	conductivity	0.01～200.0～2000μs/cm	±1%F.S
4	TDS	0.01～2000mg/L	±1%F.S
5	turbidity	0.01～20.00NTU～400.0NTU	±1%F.S
6	residual chlorine	0.01～5.00mg/L～20.00mg/L	±1%F.S
7	chlorine dioxide	0.01～5.00mg/L～20.00mg/	±1%F.S
8	Total chlorine	0.01～5.00mg/L～20.00mg/L	±1%F.S
9	ozone	0.01～5.00mg/L～20.00mg/L	±1%F.S
10	hardness	0.01～1000mg/L	±5%
11	COD	0.1～500.0mg/L	±5%
12	tone	0.1 to 30.0 degrees	±5%
13	ammonia nitrogen	0.01～100.0mg/L	±5%
14	fluorinion	0.01～100.0mg/L	±5%
15	chloridion	0.01～1000mg/L	±5%
16	potassium ion	0.01～1000mg/L	±5%
17	dissolved oxygen	0.01～20.00mg/L	±1%F.S
18	temperature	0.1～60.0℃	±0.3℃
19	signal output	RS485 MODBUS RTU for Bus 1
20	Control output	3-channel relay output
21	history	have
22	Historical curve	have
23	GPRS remote transmission	Yes, optional
24	way to install	Floor-standing
25	Water-like connection	3-minute fast card for water intake and output
26	Water-like temperature	5～40℃
27	Water-like flow velocity	300～600mL/min
28	levels of protection	IP65
29	Power Supply Voltage	100W solar power system + 100AH battery pack
30	plant capacity	Maximum approximately 20W
31	instruments weight	Approximately 45KG
32	Instrument size	Dimensions: 1565 mm (height) × 600 mm (width) × 400 mm (depth), including solar panels
