T9046 Multi-parameter Online Water Quality Monitor

Short Description:

Multi-parameter Online Water Quality Monitor is an advanced analytical instrument designed for the continuous, real-time measurement of multiple critical water quality parameters in a single integrated platform. It simultaneously monitors indicators such as pH, dissolved oxygen, conductivity, turbidity, temperature, ammonia nitrogen, and more. This monitor is widely used in drinking water treatment, wastewater management, environmental monitoring, and industrial process control. Equipped with high-precision sensors and automatic temperature compensation, it delivers reliable and stable data. The system supports remote data transmission via Modbus RS485, 4-20mA, or other industrial protocols, enabling seamless integration into SCADA or IoT platforms. Its modular design, self-cleaning function, and user-friendly interface reduce maintenance needs and operational costs. By providing comprehensive and real-time water quality assessment, this monitor plays a vital role in ensuring water safety, optimizing treatment processes, and meeting regulatory compliance efficiently.


Product Detail

Product Tags

T9046 Multi-parameter Online Water Quality Monitoring system

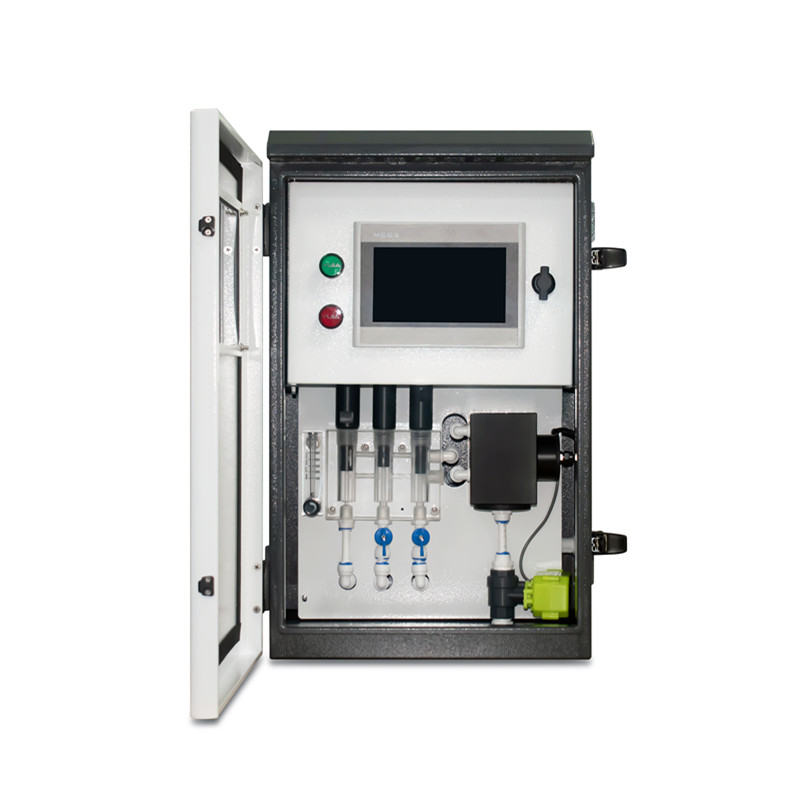

T9046 (2)

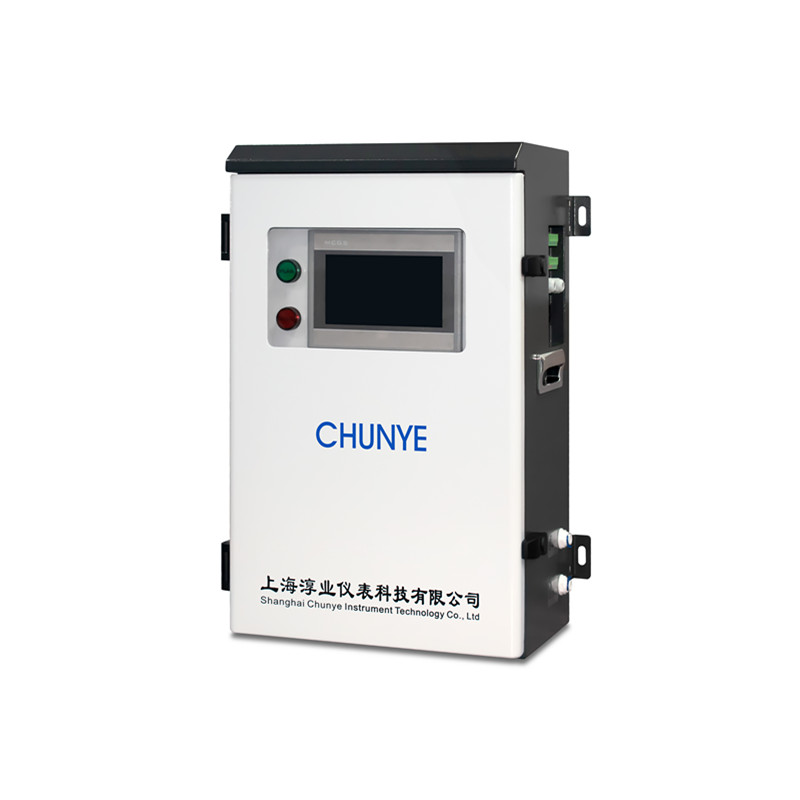

T9046 (3)

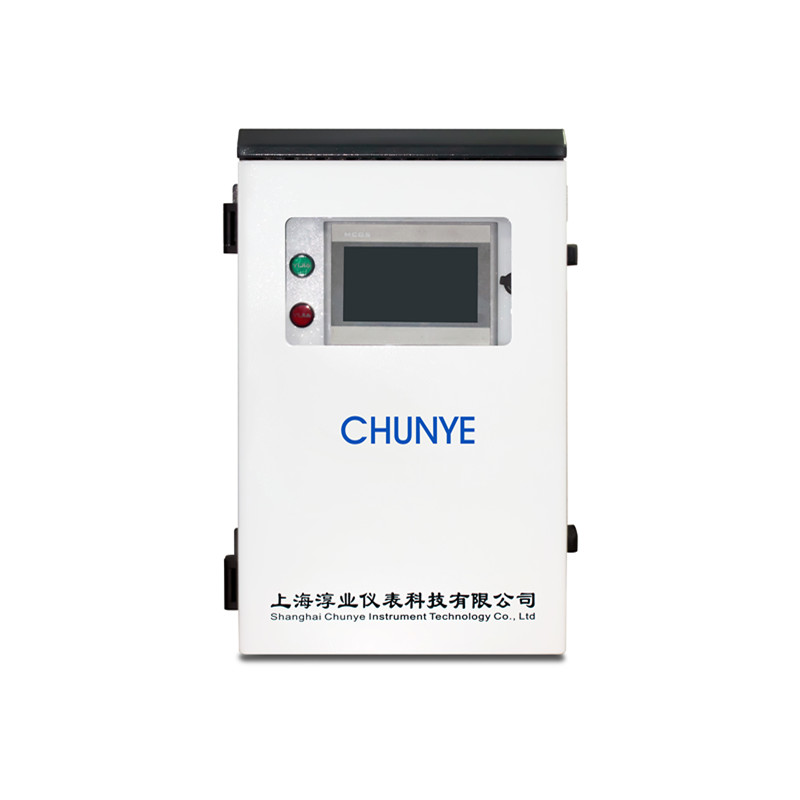

T9046 (1)
Function

For online monitoring of water supply effluent quality, pipeline water quality, and secondary water supply conditions in residential communities.

Features and Advantages

Establish a water quality information database for effluent and pipeline systems

Multi-parameter online monitoring, including: pH, ORP, conductivity (TDS), salinity, residual chlorine/chlorine dioxide/dissolved ozone, turbidity, COD, color, hardness, ammonia nitrogen, dissolved oxygen, temperature, etc.

The installation is convenient, with the system featuring only one sample inlet, one waste liquid outlet, and one power supply cable.

Typical Use
This instrument is a special instrument for detecting oxygen content in liquids in environmental protection sewage related industries. It has the characteristics of fast response, stability, reliability, and low use cost, widely used in large-scale water plants, aeration tanks, aquaculture, and sewage treatment plants.Designed for online monitoring of water supply and outlet, water quality of pipe network and secondary water supply of residential area.

T9046 Multi-parameter Online Water Quality Monitoring system

Instrument installation method
11
Technical specification

order

factor

measuring range

certainty of measurement

1

pH

0.0114.00pH ±0.05pH

2

ORP

-1000~+1000mV ±3mV

3

TDS

0.012000mg/L ±1%F.S

4

conductivity

0.01200.02000μs/cm ±1%F.S

5

turbidity

0.0120.00NTU400.0NTU ±1%F.S

6

suspended matter

0.01100.0mg/L500.0mg/L ±1%F.S

7

residual chlorine

0.015.00mg/L20.00mg/L ±1%F.S

8

chlorine dioxide

0.015.00mg/L20.00mg/ ±1%F.S

9

Total chlorine

0.015.00mg/L20.00mg/L ±1%F.S

10

ozone

0.015.00mg/L20.00mg/L ±1%F.S

11

temperature

0.160.0 ±0.3

12

signal output

1 RS485 MODBUS RTU port, 6 4-20mA ports

13

Control output

3-channel relay output

14

history

have

15

Historical curve

have

16

GPRS remote transmission

Yes, optional

17

way to install

Wall-mounted

18

Water-like connection

3-minute fast card for water intake and output

19

Water-like temperature

540

20

Water-like flow velocity

200600mL/min

21

levels of protection

IP65

22

Power Supply Voltage

100240VAC or 24VDC

23

plant capacity

About 30W

24

instruments weight

Approximately 30KG

25

Instrument size

Height 625 mm * Width 380 mm * Depth 222 mm
