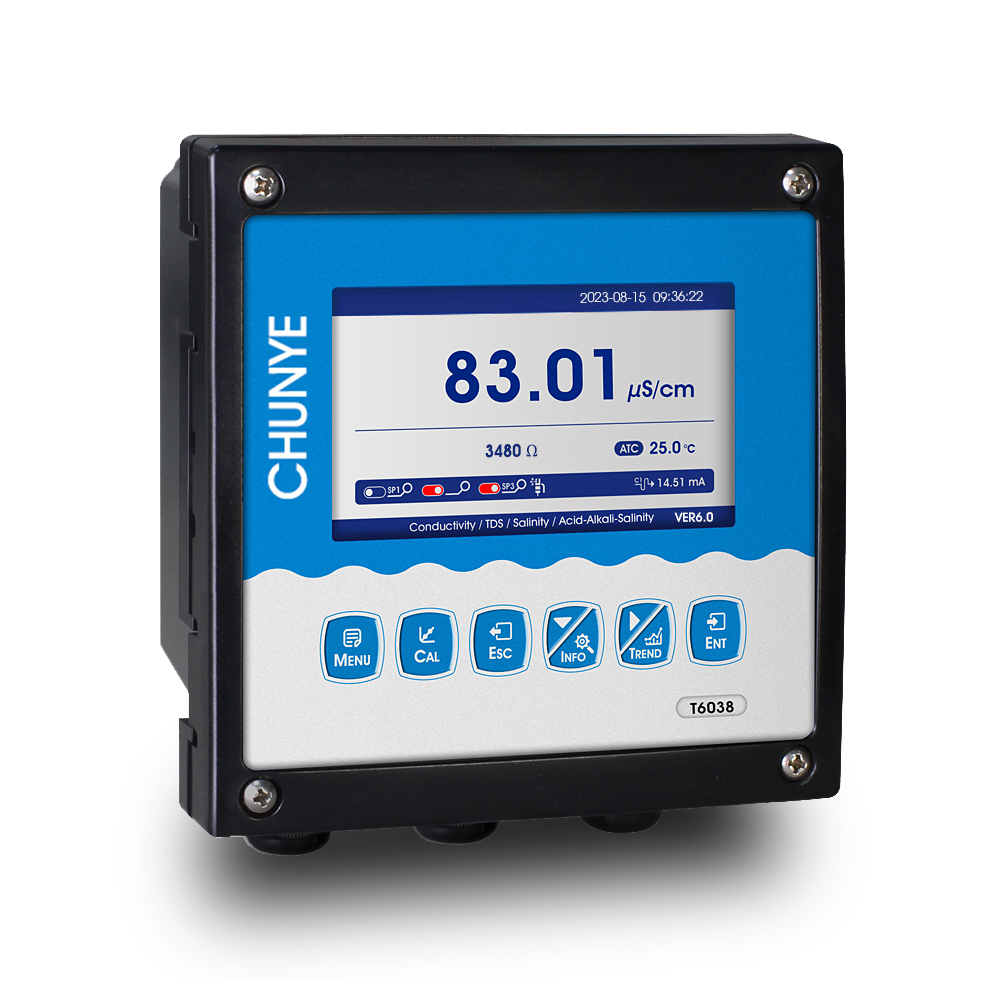

On-line Acid and Alkali Salt Concentration Meter T6038
On-line Acid and Alkali Salt Concentration Meter T6038
1.Large display, standard 485 communication, with online and offline alarm, 144*144*118mm meter size, 138*138mm hole size, 4.3 inch large screen display.
2.The data curve recording function is installed, the machine replaces the manual meter reading, and the query range is arbitrarily specified, so that the data is no longer lost.
3.It can be matched with our high-quality stainless steel, PBT quadrupole conductivity electrode, and the measurement range covers 0.00us/cm-2000ms/cm; NaOH: 0 - 16%; CaCL2: 0 - 22%; NaCL: 0 - 10%; HCL: 0~18%, 22%~36% to meet your measurement requirements for various working conditions.
4.Built-in conductivity/resistivity/salinity/total dissolved solids measurement functions, one machine with multiple functions, meeting the requirements of various measurement standards.
5.The design of the whole machine is waterproof and dustproof, and the back cover of the connection terminal is added to extend the service life in harsh environments.
6.Panel/wall/pipe installation, three options are available to meet various industrial site installation requirements.
Electrical connection The connection between the instrument and the sensor: the power supply, output signal, relay alarm contact and the connection between the sensor and the instrument are all inside the instrument. The length of the lead wire for the fixed electrode is usually 5-10 meters, and the corresponding label or color on the sensor Insert the wire into the corresponding terminal inside the instrument and tighten it.
| HCL | 0 ~ 18% |
| HCL | 22 ~ 36% |
| NaOH | 0 ~ 16% |
| NaCL | 0 ~ 10% |
| CaCL2 | 0 ~ 22% |
| Temperature | -10~150℃ |
| Resolution | ±0.3℃ |
| Temperature compensation | Automatic or manual |
| Current output | 2 Rd 4~20mA |
| Communication output | RS 485 Modbus RTU |
| Other function | Data recording, curve display, data uploading |
| Relay control contact | 3 Groups: 5A 240VAC,5A 28VDC or 120VAC |
| Optional power supply | 85~265VAC,9~36VDC, Power: ≤3W |
| The work environment | In addition to the earth's magnetic field around no
strong magnetic field interference |
| The environmental temperature | -10~60℃ |
| Relative humidity | No more than 90% |
| Protection grade
The instrument weight |
IP65
0.8kg |
| Instrument dimensions | 144*144*118mm |
| Mounting hole dimensions | 138*138mm |
| Installation | Embedded, wall - mounted, pipeline |
CS3790 Electromagnetic Conductivity Sensor
| Product | Details | Number |
| Temperature Sensor | PT1000 | N3 |
|
Cable Length |
10m | m10 |
| 15m | m15 | |
| 20m | m20 | |
|
Cable Connection |
Boring tin | A1 |
| Y Splitter | A2 | |
| Single pin | A3 |
|
Model No. |
CS3790 |
|
Measuring Mode |
Electromagnetic |
|
Housing Material |
PFA |
|
Waterproof Rating |
IP68 |
|
Measuring Range |
0～2000mS/cm |
|
Accuracy |
±1%F.S |
|
Pressure Range |
≤1.6Mpa |
|
Temperature Compensation |
PT1000 |
|
Temperature Range |
-20℃-130℃ |
|
Calibration |
Standard solution calibrate and field calibration |
|
Connection Methods |
7 core cable |
|
Cable Length |
Standard 10m cable, can be extended |
|
Application |
General application, river, lake,drink water, environment protection ,etc |
