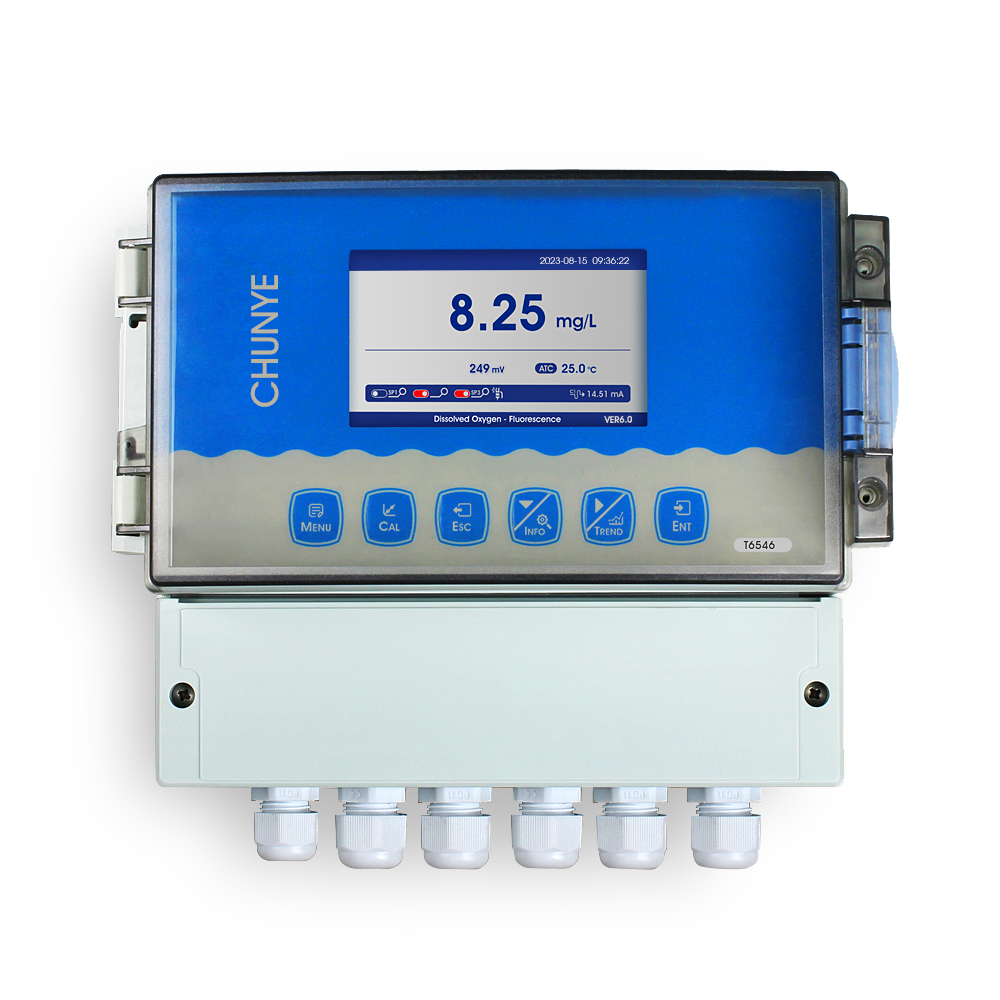

Online Optical Dissolved Oxygen Analyzer DO Meter T6546

Short Description:

Industrial online dissolved oxygen meter is an online water quality monitor and control instrument with microprocessor. The instrument is equipped with fluorescent dissolved oxygen sensors. The online dissolved oxygen meter is a highly intelligent online continuous monitor. It can be equipped with fluorescent electrodes to automatically achieve a wide range of ppm measurement. It is a special instrument for detecting oxygen content in liquids in environmental protection sewage related industries.


  • Type: Dissolved oxygen meter
  • Brand Name: Chunye
  • Signal output: RS-485(Modbus/RTU) ,4-20mA
  • Certification: CE,ios

Product Detail

Product Tags

Online Dissolved Oxygen Meter T6546

T6546
 Dissolved Oxygen Meter
 Dissolved Oxygen Meter
Function
Industrial online dissolved oxygen meter is an online water quality monitor and control instrument with microprocessor. The instrument is equipped with fluorescent dissolved oxygen sensors. The online dissolved oxygen meter is a highly intelligent online continuous monitor. It can be equipped with fluorescent electrodes to automatically achieve a wide range of ppm measurement. It is a special instrument for detecting oxygen content in liquids in environmental protection sewage related industries.
Typical Use
The online dissolved oxygen meter is a special instrument for detecting oxygen content in liquids in environmental protection sewage related industries. It has the characteristics of fast response, stability, reliability, and low use cost, and is suitable for large-scale use in water plants, aeration tanks, aquaculture, and sewage treatment plants.
Mains Supply
85~265VAC±10%,50±1Hz, power ≤3W;
9~36VDC, power consumption≤3W;
Measuring Range

Dissolved Oxygen: 0~40mg/L, 0~400%;
Customizable measuring range, displayed in ppm unit.

Online Dissolved Oxygen Meter T6546

1

Measurement mode

1

Calibration mode

3

Trend chart

4

Setting mode

Features

1.Large display, standard 485 communication, with online and offline alarm, 235×185×120mm meter size, 7.0 inch large screen display.

2.Fluorescence dissolved oxygen electrode adopts optical physics principle, no chemical reaction in the measurement, no influence of bubbles, aeration/anaerobic tank installation and measurement are more stable, maintenance-free in the later period, and more convenient to use.

3.The data curve recording function is installed, the machine replaces the manual meter reading, and the query range is arbitrarily specified, so that the data is no longer lost.

4.Carefully select materials and strictly select each circuit component, which greatly improves the stability of the circuit during long-term operation.

5.The new choke inductance of the power board can effectively reduce the influence of electromagnetic interference, and the data is more stable.

6.The design of the whole machine is waterproof and dustproof, and the back cover of the connection terminal is added to extend the service life in harsh environments.

7.Panel/wall/pipe installation, three options are available to meet various industrial site installation requirements.

Electrical connections
Electrical connection The connection between the instrument and the sensor: the power supply, output signal, relay alarm contact and the connection between the sensor and the instrument are all inside the instrument. The length of the lead wire for the fixed electrode is usually 5-10 meters, and the corresponding label or color on the sensor Insert the wire into the corresponding terminal inside the instrument and tighten it.
Instrument installation method
11
Technical specifications
Measurement range 0~40.00mg/L; 0~400.0%
Measurement unit mg/L; %
Resolution 0.01mg/L; 0.1%
Basic error ±1%F.S
Temperature -10~150℃
Temperature Resolution 0.1℃
Temperature Basic error ±0.3℃
Current Output 4~20mA,20~4mA,(load resistance<750Ω)
Communication output RS485 MODBUS RTU
Relay control contacts 5A 240VAC,5A 28VDC or 120VAC
Power supply (optional) 85~265VAC,9~36VDC,power consumption≤3W
Working conditions No strong magnetic field interference around except the geomagnetic field.
Working temperature -10~60℃
Relative humidity ≤90%
IP rate IP65
Instrument Weight 1.5kg
Instrument Dimensions 235×185×120mm
Installation methods Wall mounted

Digital Dissolved Oxygen Sensor

3
Order Number

Model No.

CS4760D

Power/Output

9~36VDC/RS485 MODBUS RTU

Measuring Mode

Fluorescence method

Housing Material

POM+316LStainless steel

Waterproof Rating

IP68

Measuring Range

0-20mg/L

Accuracy

±1%F.S

Pressure Range

≤0.3Mpa
TemperatureCompensation NTC10K

Temperature Range

0-50℃

Calibration

Anaerobic Water Calibration and Air Calibration

Connection Method

4 core cable

Cable Length

Standard 10m cable, can be extended

Installation Thread

G3/4’’

Application

General application, river, lake,drink water, environment protection ,etc
