Salinity Tester Meter For Aquaculture Digital Monitor Water Quality Analyser CS3743D

Short Description:

Product Description
For continuous monitoring and control of conductivity / TDS and temperature values of aqueous solutions. Widely used in power plants, petrochemical, metallurgy, paper industry, environmental water treatment, light industrial electronics and other fields. For example, monitoring and control of raw water and water quality of water production equipment such as power plant cooling water, recharge water, saturated water, condensate water and furnace water, ion exchange, reverse osmosis EDL,seawater distillation.The sensor is made from a combination of FDA-approved fluid receiving materials.This makes them ideal for monitoring pure water systems for the preparation of injectable solutions and similar applications.In this application, the sanitary crimping method is used for installation.

Customized support:: OEM, ODM
Type:: Digital Salinity/Ec/Conductivity Meter
Place of Origin:: Shanghai
Model Number:: CS3743D
Output Signal:: RS485 or 4-20mA
Power supply:: 9~36VDC/RS485 MODBUS RTU
Waterproof grade:: IP68
Output: RS485 Modbus RTU

Send email to us Download as PDF

Product Detail

Product Tags

Digital Conductivity Sensor

Feature

1.Easy to connect to PLC, DCS, industrial control computers, general-purpose controllers, paperless recording

instruments or touch screens, and other third-party devices.
2.Measuring the specific conductivity of aqueous solutions is becoming increasingly important for determining

impurities in water.
3.Suitable for low conductivity applications in the power, water, semiconductor,and pharmaceu tical industries,

these sensors are compact and easy to use.
4.The meter can be installed in several ways, one of which is through the compression gland, which is a simple

and effective method of direct insertion into the processing pipeline.

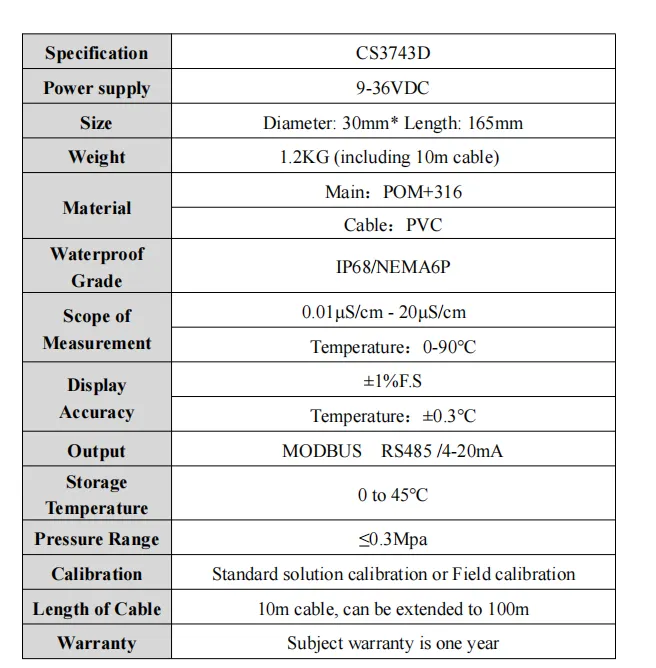

Product Parameter

Model NO.	CS3743D
Power/Outlet	9~36VDC/RS485 MODBUS RTU
Cell constant	K=0.01
Measure material	Graphite (2 Electrode)
Housing material	316L+POM
Waterproof grade	IP68
Measurement range	0-20us/cm
Accuracy	±1%F.S
Pressure resistance	≤2.0Mpa
Temperature compensation	NTC10K
Temperature range	0-130℃
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 10m cable, can be extended to 100m
Installation thread	NPT3/4’’
Application	General application, river, lake , drink water,etc.

FAQ

Q1: What's your business range?
A: We manufacture Water quality analysis instruments and provide dosing pump, diaphragm pump, water

pump, pressure instrument, flow meter, level meter and dosing system.
Q2: May I visit your factory?
A: Of course, our factory is located in Shanghai, welcome your arrival.
Q3: Why should I use Alibaba Trade Assurance orders?
A: Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales, returns, claims etc.
Q4: Why choose us?
1. We have more than 10 years of industry experience in water treatment.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and
