T9048 Multi-parameter Online Water Quality Monitor

Short Description:

Multi-parameter Online Water Quality Monitor is an advanced analytical instrument designed for the continuous, real-time measurement of multiple critical water quality parameters in a single integrated platform. It simultaneously monitors indicators such as pH, dissolved oxygen, conductivity, turbidity, temperature, ammonia nitrogen, and more. This monitor is widely used in drinking water treatment, wastewater management, environmental monitoring, and industrial process control. Equipped with high-precision sensors and automatic temperature compensation, it delivers reliable and stable data. The system supports remote data transmission via Modbus RS485, 4-20mA, or other industrial protocols, enabling seamless integration into SCADA or IoT platforms. Its modular design, self-cleaning function, and user-friendly interface reduce maintenance needs and operational costs. By providing comprehensive and real-time water quality assessment, this monitor plays a vital role in ensuring water safety, optimizing treatment processes, and meeting regulatory compliance efficiently.


Product Detail

Product Tags

T9048 Multi-parameter Online Water Quality Monitoring system

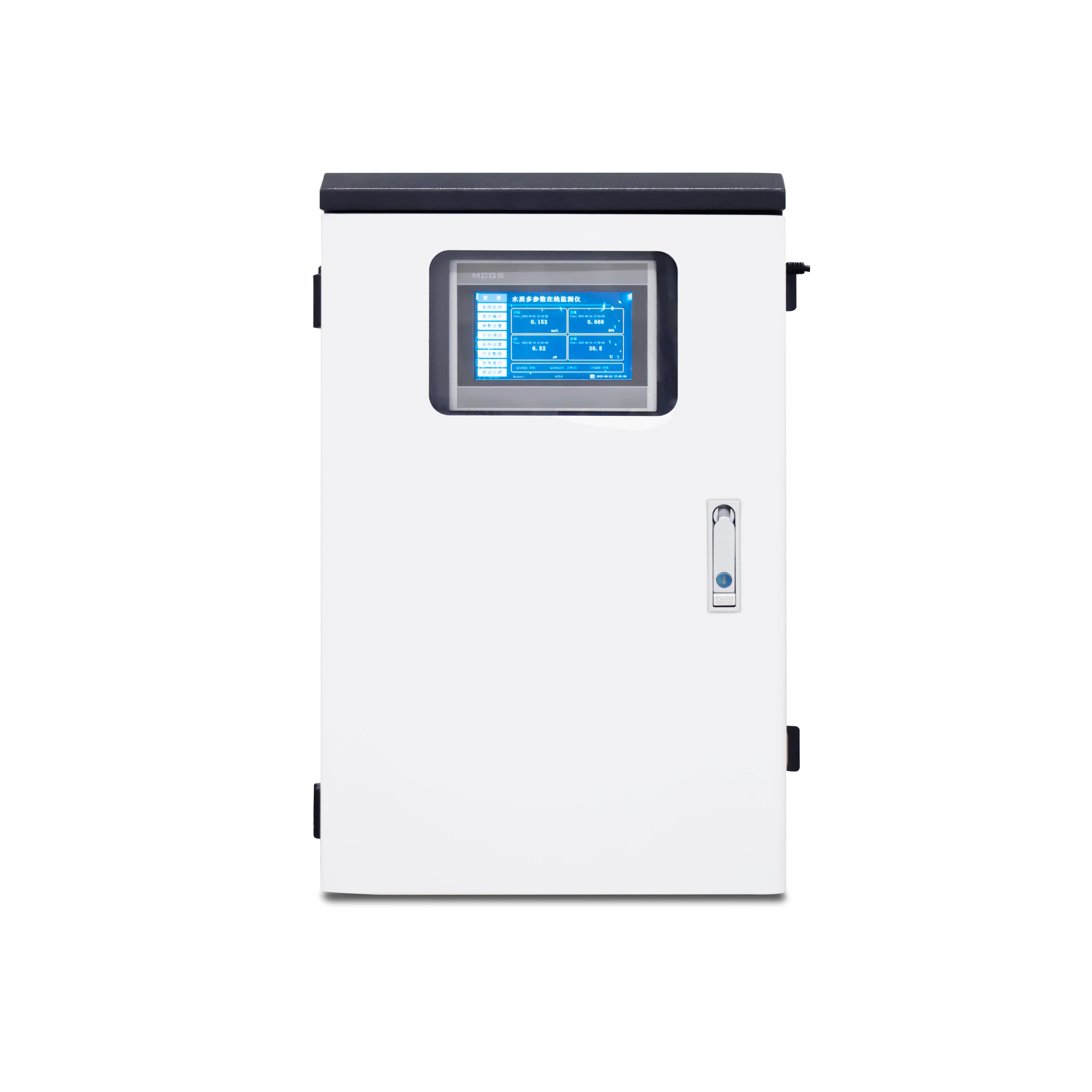

T9048 (3)

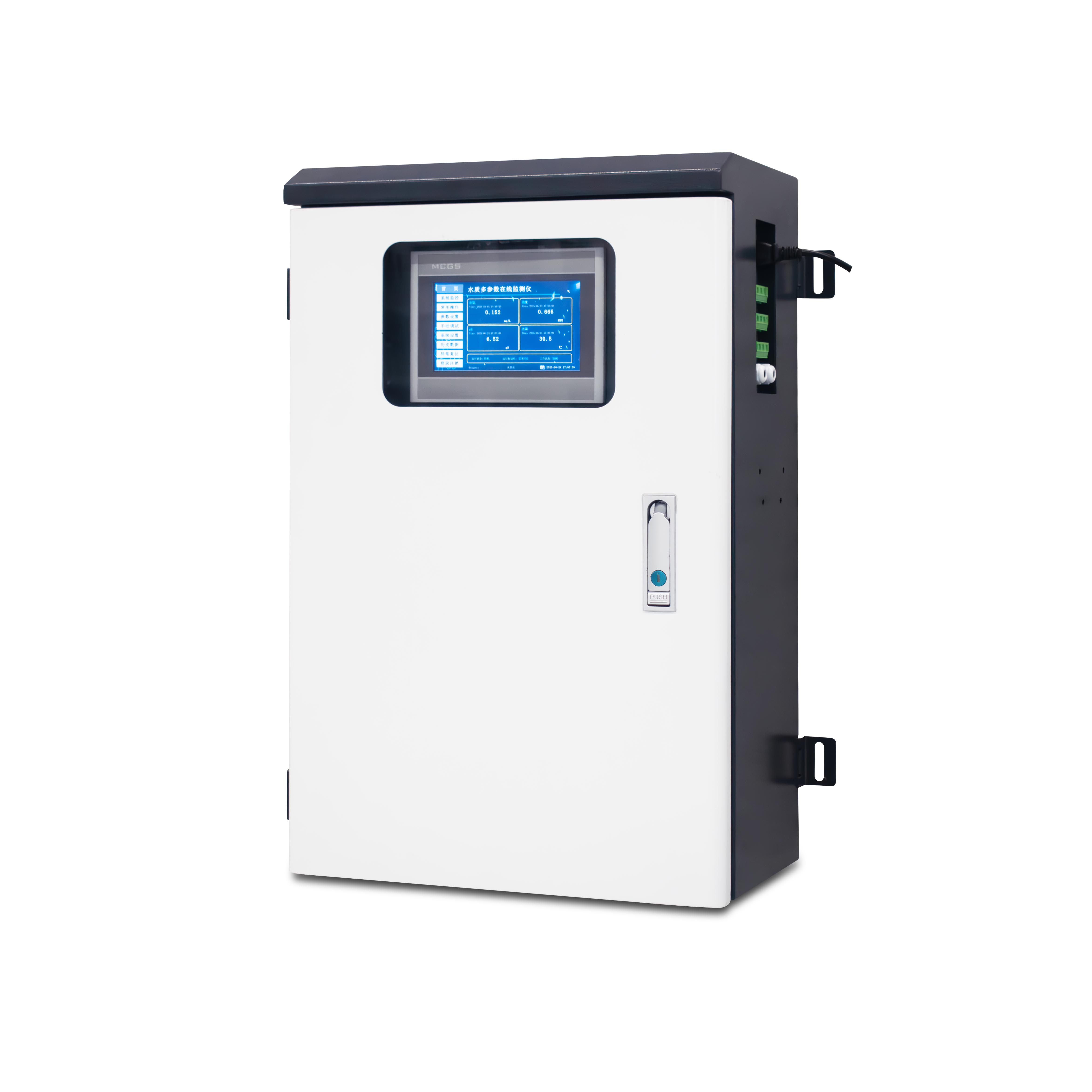

T9048 (2)

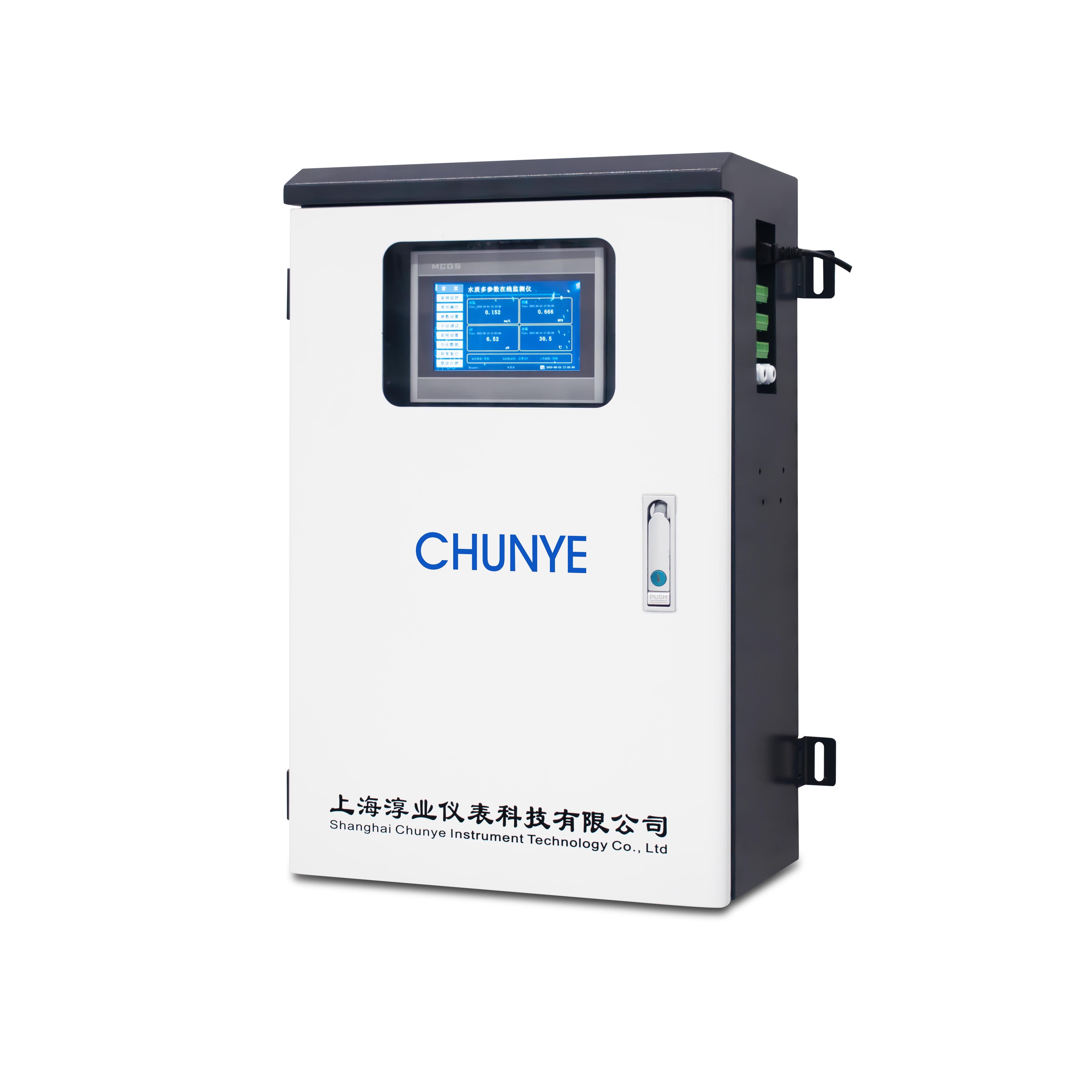

T9048 (1)
Function

For online monitoring of water supply effluent quality, pipeline water quality, and secondary water supply conditions in residential communities.

Features and Advantages

Establish a water quality information database for effluent and pipeline systems

Multi-parameter online monitoring, including: pH, ORP, conductivity (TDS), salinity, residual chlorine/chlorine dioxide/dissolved ozone, turbidity, COD, color, hardness, ammonia nitrogen, dissolved oxygen, temperature, etc.

The installation is convenient, with the system featuring only one sample inlet, one waste liquid outlet, and one power supply cable.

Typical Use
This instrument is a special instrument for detecting oxygen content in liquids in environmental protection sewage related industries. It has the characteristics of fast response, stability, reliability, and low use cost, widely used in large-scale water plants, aeration tanks, aquaculture, and sewage treatment plants.Designed for online monitoring of water supply and outlet, water quality of pipe network and secondary water supply of residential area.

T9048 Multi-parameter Online Water Quality Monitoring system

Features
2.Multi-parameter on-line monitoring system can support six parameters at the same time. Customizable parameters.
3.Easy to install. The system has only one sample inlet, one waste outlet and one power supply connection;
4.The historical record: Yes
5.Installation mode: Vertical type;
6.The sample flow rate is 400 ~ 600mL/min;
7.4-20mA or DTU remote transmission. GPRS;
Electrical connections
Electrical connection The connection between the instrument and the sensor: the power supply, output signal, relay alarm contact and the connection between the sensor and the instrument are all inside the instrument. The length of the lead wire for the fixed electrode is usually 5-10 meters, and the corresponding label or color on the sensor Insert the wire into the corresponding terminal inside the instrument and tighten it.
Instrument installation method
11
Technical specification

order

factor

measuring range

certainty of measurement

1

pH

0.0114.00pH ±0.05pH

2

ORP

-1000~+1000mV ±3mV

3

TDS

0.012000mg/L ±1%F.S

4

conductivity

0.01200.02000μs/cm ±1%F.S

5

turbidity

0.01100.0NTU ±1%F.S

6

suspended matter

0.01200.0mg/L ±1%F.S

7

DPD residual chlorine

0.015.00mg/L ±1%F.S

8

Total chlorine in DPD

0.015.00mg/L ±1%F.S

9

temperature

0.160.0 ±0.3

10

signal output

RS485 MODBUS RTU for Bus 1

11

Control output

3-channel relay output

12

history

have

13

Historical curve

have

14

4G long-distance transmission

Yes, optional

15

way to install

Wall-mounted

16

Water-like connection

Fast inlet/outlet card

17

Water-like temperature

540

18

Water-like flow velocity

200600mL/min

19

levels of protection

IP65

20

Power Supply Voltage

100240VAC or 24VDC

21

plant capacity

About 30W

22

instruments weight

Approximately 35KG

23

Instrument size

Height 700 mm * Width 450 mm * Depth 285 mm
